pSemi recommends a 4-layer PCB with a solid ground plane, and to keep the RF traces as short and wide as possible. Additionally, it's recommended to use a common mode filter and to decouple the VCC and VDD pins.
The PE43650A-Z requires a bias voltage of 3.3V on the VCC pin and 1.8V on the VDD pin. Ensure that the bias voltage is stable and within the recommended range, and that the voltage supply is decoupled with capacitors to minimize noise.
The PE43650A-Z is designed to operate up to 6 GHz, but the actual operating frequency may vary depending on the specific application and PCB layout. It's recommended to consult with pSemi's application engineers for specific guidance on operating frequency.
pSemi recommends using a combination of visual inspection, signal integrity analysis, and debugging tools such as oscilloscopes and spectrum analyzers to troubleshoot issues with the PE43650A-Z. Additionally, consult the datasheet and application notes for specific guidance on troubleshooting common issues.
pSemi recommends using a thermal pad or heat sink to dissipate heat from the PE43650A-Z. Ensure that the thermal pad or heat sink is properly attached to the device and that the PCB is designed to allow for adequate airflow.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
PE43650A-Z Overview

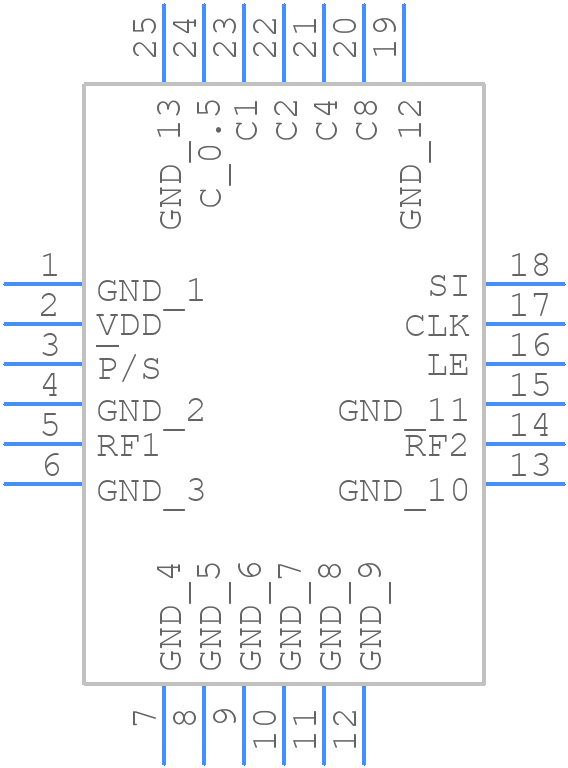

Use the download button to access the PE43650A-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE436,
or try a keyword search, such as RF/Microwave Attenuators
