PE43670A-Z - Peregrine Semiconductor

Description: Attenuators 50? 7Bit 31.75dB 0.25dB Digital Step Attenuator

Download PE43670A-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

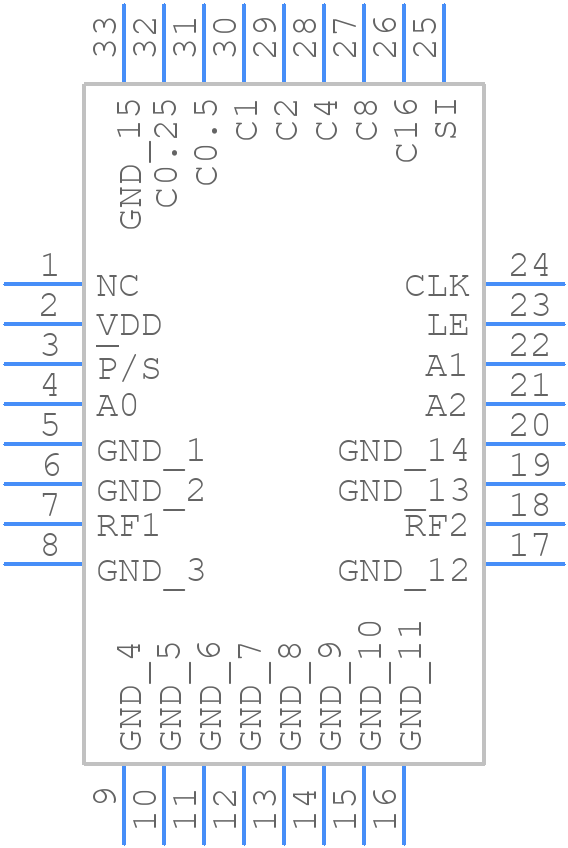

PE43670A-Z - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE43670A-Z - Peregrine Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32 5x5
click to zoom
3D Models
PE43670A-Z - Peregrine Semiconductor - 3D model - Quad Flat No-Lead - QFN32 5x5
click to zoom

PE43670A-Z Details

  • Manufacturer Part Number:

    PE43670A-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    pSemi

  • YTEOL:

    7

  • Additional Feature:

    CMOS COMPATIBLE

  • Attenuation-Nom:

    31.75 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    23 dBm

  • Insertion Loss-Max:

    2.4 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    4000 MHz

  • Operating Frequency-Min:

    0.009 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Packing Method:

    TR

  • Power Supplies:

    3.3/5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Screening Level:

    MIL-STD-883

  • Supply Current-Max:

    0.35 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.29

PE43670A-Z Frequently Asked Questions (FAQs)

  • pSemi recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the device should be connected to a thermal plane on the PCB. Refer to the pSemi application note for detailed layout guidelines.
  • The PE43670A-Z requires a bias voltage of 3.3V ± 10% on the VDD pin, and a bias current of 10mA ± 10% on the VBIAS pin. Ensure that the bias voltage and current are stable and within the recommended range for optimal performance.
  • The PE43670A-Z has a differential input impedance of 100 ohms and a differential output impedance of 50 ohms. Ensure that the input and output signals are impedance-matched to these values for optimal performance and to minimize signal reflections.
  • The PE43670A-Z requires a specific power-on and power-off sequencing to prevent damage to the device. Ensure that the VDD pin is powered on before the VBIAS pin, and that the VBIAS pin is powered off before the VDD pin.
  • The PE43670A-Z operates over a temperature range of -40°C to +85°C. The device's performance may degrade at higher temperatures, so ensure that the device is operated within the recommended temperature range for optimal performance.
