PE43704B-Z - Peregrine Semiconductor

Description: Attenuators 50? 7Bit 31.75dB 0.25dB, 0.5dB 1.0dB Digital Step Attenuator, optional ext. Vss

Download PE43704B-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

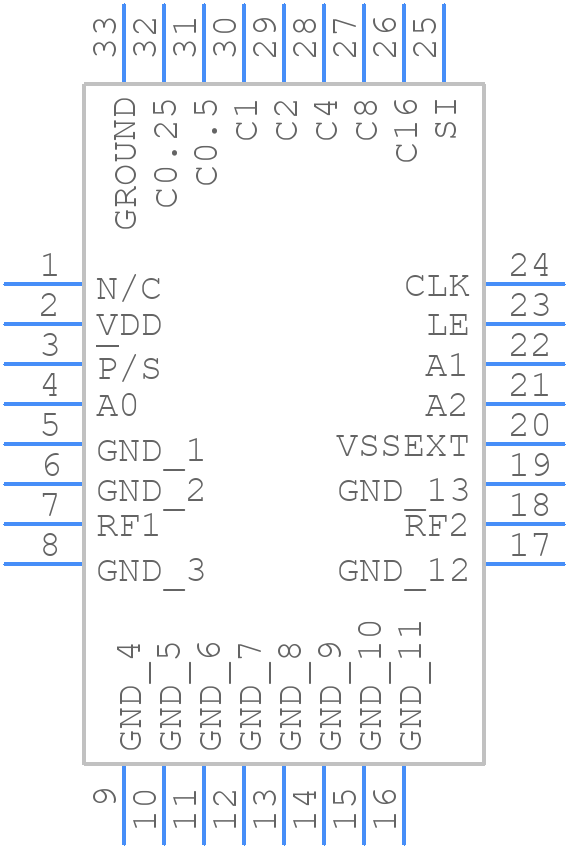

PE43704B-Z - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE43704B-Z - Peregrine Semiconductor PCB footprint - Other - Other - 32-lead 5x5 QFN_2021
click to zoom
3D Models
PE43704B-Z - Peregrine Semiconductor - 3D model - Other - 32-lead 5x5 QFN_2021
click to zoom

PE43704B-Z Details

  • Manufacturer Part Number:

    PE43704B-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-07-18

  • Manufacturer:

    pSemi

  • YTEOL:

    6.6

  • Additional Feature:

    I/P POWER-MAX(PULSE)=1.26W

  • Attenuation-Nom:

    31 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    34 dBm

  • Insertion Loss-Max:

    3.2 dB

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    0.009 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

PE43704B-Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation. Use thermal pads or a heat sink for high-power applications.
  • Use a pi-network or a T-network topology with a series inductor and shunt capacitors to match the input impedance. Optimize component values using simulation tools or measurement-based methods.
  • Ensure a stable voltage supply with minimal ripple. Use a voltage regulator or a low-dropout regulator to maintain a stable bias voltage. Add decoupling capacitors to filter out noise and ensure stability.
  • Use a shielded enclosure, keep sensitive components away from the amplifier, and use EMI filters or absorbers. Ensure proper grounding and decoupling to minimize radiation and susceptibility.
  • Derate the device's power handling by 1.5% per degree Celsius above 85°C. Ensure proper heat sinking and thermal management to maintain a safe junction temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PE43704B-Z Overview

Use the download button to access the PE43704B-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE437, or try a keyword search, such as RF/Microwave Attenuators
