PE43712B-Z - Peregrine Semiconductor

Description: Attenuators 50? 7Bit 31.75dB 0.25dB, 0.5dB, 1.0dB Digital Step Attenuator, w/o ext. Vss

Download PE43712B-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

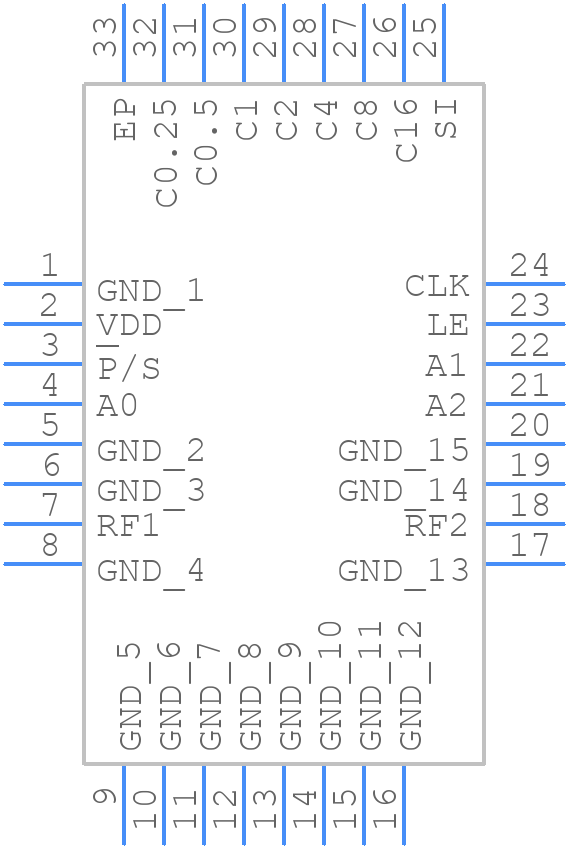

Symbol
PE43712B-Z - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE43712B-Z - Peregrine Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ***32-lead 5 × 5 × 0.85 mm QFN_21
click to zoom
3D Models
PE43712B-Z - Peregrine Semiconductor - 3D model - Quad Flat No-Lead - ***32-lead 5 × 5 × 0.85 mm QFN_21
click to zoom

PE43712B-Z Details

  • Manufacturer Part Number:

    PE43712B-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Date Of Intro:

    2017-09-19

  • Manufacturer:

    pSemi

  • YTEOL:

    6.6

  • Additional Feature:

    I/P POWER-MAX(PULSE)=0.63W

  • Attenuation-Nom:

    31 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    23.01 dBm

  • Insertion Loss-Max:

    2.8 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    0.009 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Supply Current-Max:

    0.2 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

PE43712B-Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a common mode filter or a Pi-filter to reduce EMI.
  • The PE43712B-Z requires a 3.3V power supply. Ensure the voltage regulator is stable and can provide enough current. Add decoupling capacitors close to the device to reduce noise and ensure a stable bias.
  • The PE43712B-Z can handle up to 30 dBm of input power. However, it's recommended to operate within the 1 dB compression point (typically around 20 dBm) to ensure optimal linearity and performance.
  • Use a spectrum analyzer to measure the input and output signals. Check the PCB layout for any issues, such as poor grounding or EMI. Verify the power supply and biasing are stable and within specifications.
  • Yes, the PE43712B-Z can be used in a push-pull configuration to improve linearity and reduce distortion. However, ensure the two devices are properly matched and biased to achieve optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PE43712B-Z Overview

Use the download button to access the PE43712B-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE437, or try a keyword search, such as RF/Microwave Attenuators
