pSemi recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane or a heat sink.
Ensure that the device is operated within the recommended operating conditions, including voltage, current, and temperature. Also, follow proper PCB design and layout guidelines, and use adequate thermal management to prevent overheating.
The PE64906MLAA-Z has built-in ESD protection, but handling precautions should still be taken. Use an ESD wrist strap or mat, and handle the device by the package body, not the pins. Avoid touching the pins or exposing the device to static electricity.
The PE64906MLAA-Z is a commercial-grade device, but pSemi offers a range of high-reliability and aerospace-grade products. Contact pSemi for more information on their high-reliability product offerings and qualification processes.
pSemi recommends following the JEDEC J-STD-020 standard for soldering and rework. Use a soldering iron with a temperature of 260°C (500°F) or lower, and avoid applying excessive force or pressure to the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PE64906MLAA-Z Overview

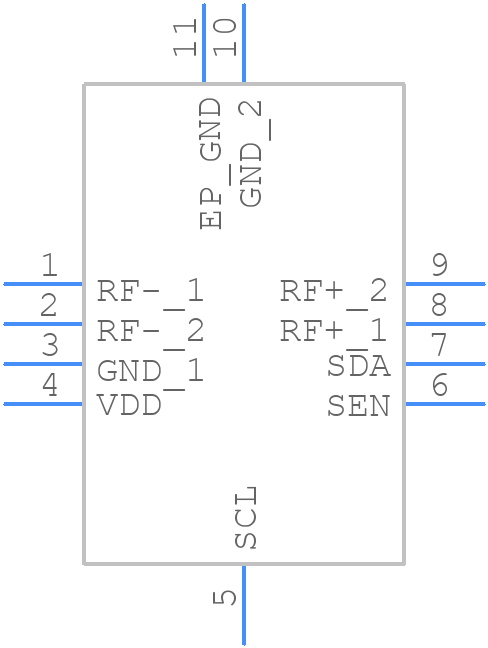

Use the download button to access the PE64906MLAA-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE649,
or try a keyword search, such as Other Signal Circuits
