pSemi recommends a 4-layer PCB with a solid ground plane, and to keep the RF signal traces as short as possible. Additionally, it's essential to follow the recommended component placement and routing guidelines to minimize parasitic inductance and capacitance.
To ensure proper biasing, follow the recommended voltage and current settings outlined in the datasheet. Additionally, use a low-noise, high-PSRR voltage regulator to power the device, and decouple the power supply lines with high-quality capacitors.
The PE64907B-Z is rated for operation from -40°C to +85°C. However, it's essential to ensure proper thermal management, such as using a heat sink or thermal pad, to maintain a safe operating temperature and prevent overheating.
Yes, the PE64907B-Z can be used in switching applications, but it's essential to follow the recommended switching frequency and duty cycle guidelines to prevent overheating and ensure reliable operation. Additionally, consider using a suitable switching controller or driver to minimize power losses and ensure efficient operation.
To troubleshoot common issues, start by verifying the PCB layout and component placement, ensuring that the device is properly biased and powered. Next, check the input and output signal levels, and verify that the device is operating within the recommended frequency range. If issues persist, consult the datasheet and application notes for guidance, or contact pSemi's technical support team for assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PE64907B-Z Overview

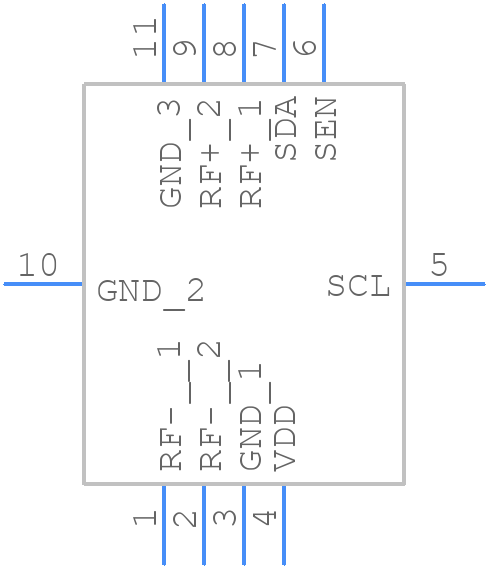

Use the download button to access the PE64907B-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE649,
or try a keyword search, such as Other Signal Circuits
