pSemi recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Additionally, it's recommended to use a common mode filter and to decouple the power supply lines.
The PE64907MLAA-Z requires a bias voltage of 3.3V or 5V, and the recommended bias current is 10mA. It's also important to ensure the bias voltage is stable and noise-free to prevent affecting the device's performance.
The PE64907MLAA-Z is rated for operation from -40°C to 85°C, but it's recommended to operate within the -20°C to 70°C range for optimal performance and reliability.
pSemi recommends checking the power supply voltage, bias current, and signal integrity. Also, verify that the device is properly soldered and that there are no shorts or opens on the PCB. If issues persist, contact pSemi's technical support for further assistance.
Yes, the PE64907MLAA-Z is compatible with lead-free soldering processes, but it's recommended to follow pSemi's recommended soldering profile to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PE64907MLAA-Z Overview

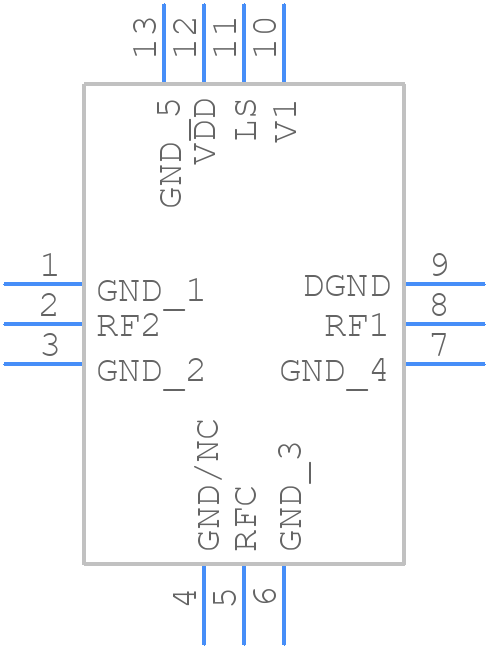

Use the download button to access the PE64907MLAA-Z schematic symbol, PCB footprint, and 3D model.
