PEMD4,115 - Nexperia

Description: NEXPERIA - PEMD4,115 - Bipolar Pre-Biased / Digital Transistor, BRT, NPN and PNP Complement, 50 V, 100 mA, 10 kohm

Download PEMD4,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

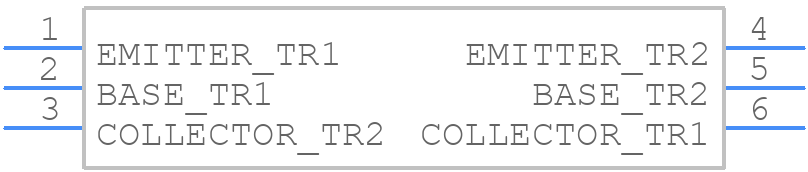

Symbol
PEMD4,115 - Nexperia - PCB symbol
click to zoom
PCB Footprints
PEMD4,115 - Nexperia PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SOT666 height 0.6
click to zoom
3D Models
PEMD4,115 - Nexperia - 3D model - SO Transistor Flat Lead - SOT666 height 0.6
click to zoom

PEMD4,115 Details

  • Manufacturer Part Number:

    PEMD4,115

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT

  • Package Description:

    PLASTIC PACKAGE-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT666

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Additional Feature:

    BUILT-IN BIAS RESISTOR

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    200

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

PEMD4,115 Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. Multiple vias can be used to connect the thermal pad to an inner layer or the backside of the PCB for better heat dissipation.
  • Ensure that the device is operated within the recommended temperature range (-40°C to 150°C). Use a heat sink or thermal interface material to improve heat dissipation. Avoid overheating, as it can reduce the device's lifespan.
  • The maximum allowed voltage on the input pins is 5.5V. Exceeding this voltage can damage the device. Use voltage limiting resistors or voltage regulators to ensure the input voltage remains within the recommended range.
  • Use ESD protection devices, such as TVS diodes or ESD arrays, on the input pins to protect against electrostatic discharge. Add overvoltage protection devices, such as voltage regulators or zener diodes, to prevent voltage exceeding the recommended maximum.
  • Store the device in a dry, cool place, away from direct sunlight and moisture. Avoid exposing the device to temperatures above 30°C or humidity above 60%. Use anti-static packaging and handling to prevent ESD damage.
