PEP01-5841 - STMicroelectronics

Description: Quad 58 V TVS for PoE supplies in SO-8

Download PEP01-5841 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

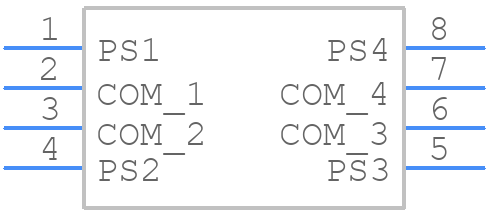

Symbol
PEP01-5841 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
PEP01-5841 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO8 – 8
click to zoom
3D Models
PEP01-5841 - STMicroelectronics - 3D model - Small Outline Packages - SO8 – 8
click to zoom

PEP01-5841 Details

  • Manufacturer Part Number:

    PEP01-5841

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    PoE POWERED DEVICE CONTROLLER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

PEP01-5841 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane, and keeping the input and output stages separate, is recommended for optimal performance and minimal electromagnetic interference (EMI).
  • Ensure proper thermal management by providing adequate heat sinking, and consider using a thermal interface material (TIM) to improve heat transfer. Also, follow the recommended operating temperature range and derating guidelines.
  • Use a common-mode choke and a differential-mode filter to reduce EMI. Ensure the filter components are placed close to the PEP01-5841, and use a shielded cable for the output stage to minimize radiation.
  • Use an oscilloscope to monitor the input and output waveforms, and check for signs of oscillation or ringing. Verify the PCB layout and component placement, and ensure proper thermal management. Consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, but ensure you follow the recommended design and manufacturing guidelines, and perform thorough testing and validation to meet the required safety and reliability standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PEP01-5841 Overview

Use the download button to access the PEP01-5841 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PEP01, or try a keyword search, such as Power Management Circuits
