PES1-S5-S3-M-TR - CUI Inc.

Description: Isolated DC/DC Converters dc-dc isolated, 1 W, 4.5 5.5 Vdc input, 3.3 Vdc, 303 mA, single unregulated output, SMT, T&R pkg

Download PES1-S5-S3-M-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

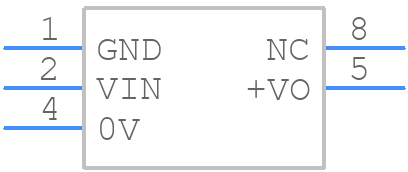

PES1-S5-S3-M-TR - CUI Inc. - PCB symbol
click to zoom
PCB Footprints

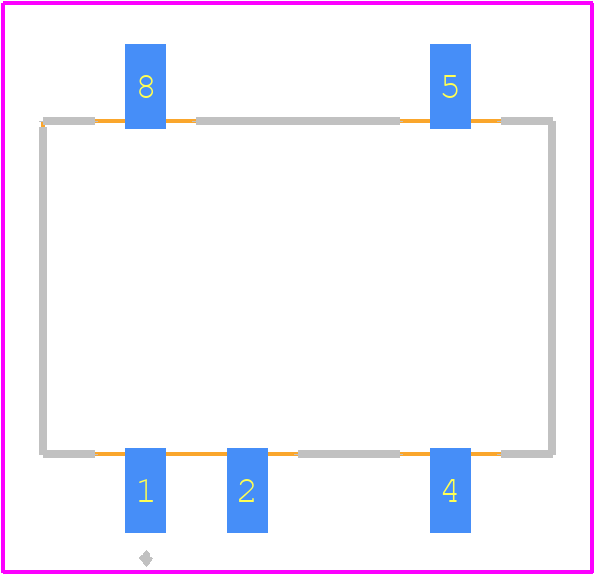

PES1-S5-S3-M-TR - CUI Inc. PCB footprint - Other - Other - PES1-S5-S3-M-TR-2
click to zoom
3D Models
PES1-S5-S3-M-TR - CUI Inc. - 3D model - Other - PES1-S5-S3-M-TR-2
click to zoom

PES1-S5-S3-M-TR Details

  • Manufacturer Part Number:

    PES1-S5-S3-M-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    CUI Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC UNREGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDMA-G5

  • Length:

    12.7 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    7.5 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    1 W

  • Trim/Adjustable Output:

    NO

  • Width:

    8.3 mm

PES1-S5-S3-M-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the PES1-S5-S3-M-TR should consider the following: keep the input and output traces separate, use a solid ground plane, and minimize the length of the input and output traces to reduce EMI.
  • To ensure reliable operation over the full operating temperature range, ensure that the module is properly derated, and the system is designed to handle the maximum temperature coefficient of the module.
  • The recommended input capacitor is a 10uF ceramic capacitor, and the recommended output capacitor is a 22uF ceramic capacitor. However, the actual capacitor values may vary depending on the specific application and requirements.
  • To protect the module from overvoltage and undervoltage conditions, consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits to the input of the module.
  • The maximum allowable ripple current for the PES1-S5-S3-M-TR is 30% of the maximum output current. Exceeding this limit may reduce the module's reliability and lifespan.
