A good PCB layout for the PES1-S5-S5-M-TR should ensure that the input and output capacitors are placed close to the module, and the input and output voltage lines are separated to minimize noise and EMI. A solid ground plane and proper decoupling are also recommended.
To ensure reliable operation in high-temperature environments, make sure to follow the recommended derating curves for the module, and consider using a heat sink or thermal interface material to improve heat dissipation. Additionally, ensure good airflow and avoid blocking the airflow vents on the module.
Exceeding the maximum input voltage rating can cause permanent damage to the module, including overheating, electrical overstress, and even failure. It's essential to ensure that the input voltage remains within the specified range to maintain the module's reliability and performance.
Yes, the PES1-S5-S5-M-TR can be used in a redundant or parallel configuration to achieve higher power output or improved reliability. However, it's crucial to follow proper design and implementation guidelines to ensure that the modules operate in sync and do not interfere with each other.
The PES1-S5-S5-M-TR is designed to meet CISPR 22 and FCC Part 15 Class B emissions standards. To ensure compliance, follow proper PCB layout and design guidelines, use appropriate EMI filters, and consider shielding and grounding techniques to minimize electromagnetic interference.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PES1-S5-S5-M-TR Overview

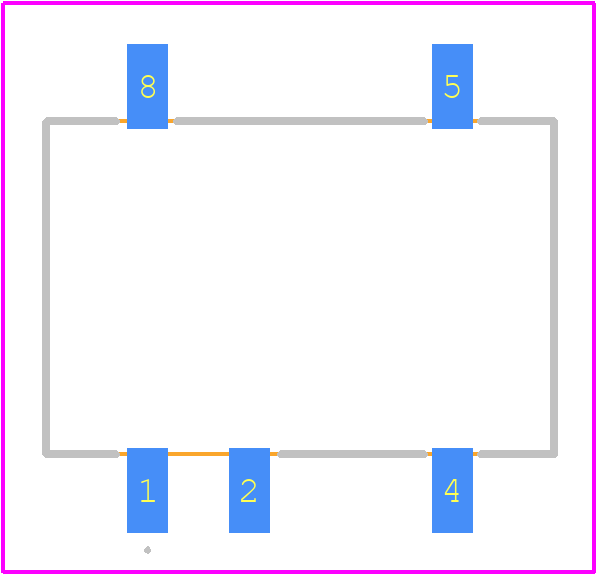

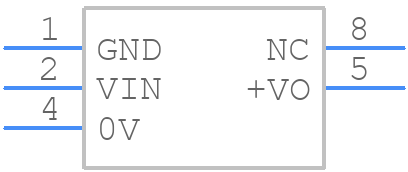

Use the download button to access the PES1-S5-S5-M-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PES1-,
or try a keyword search, such as Power Supply Modules
