PET-04-02-L-RA-LC footprint, schematic symbol and 3D model by SAMTEC

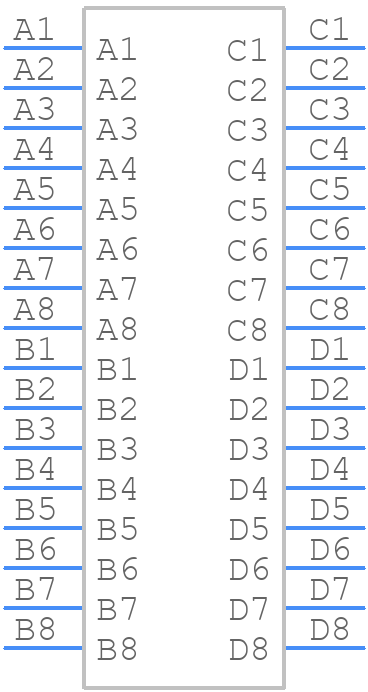

Symbol

click to zoom

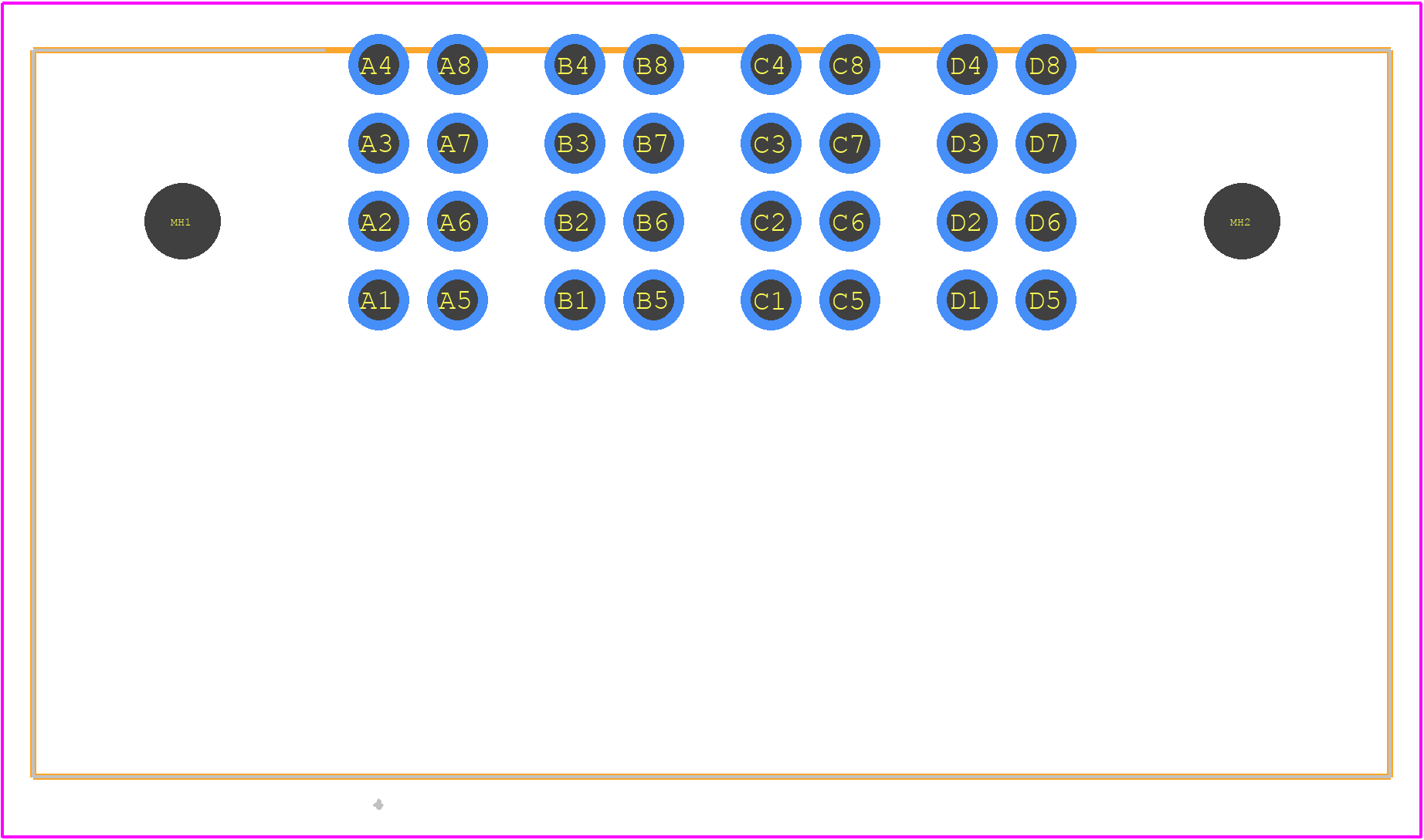

PCB Footprints

PET-04-02-L-RA-LC - SAMTEC PCB footprint - Other - Other - PET-04-02-L-RA-LC-1

click to zoom

3D Models

PET-04-02-L-RA-LC - SAMTEC - 3D model - Other - PET-04-02-L-RA-LC-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PET-04-02-L-RA-LC
Part Number PET-04-02-L-RA-LC
Manufacturer SAMTEC
Pin Count 32
Part Category Connector
Package Category Other
Footprint Name Other - PET-04-02-L-RA-LC-1
Released Date Jun 29, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PET-04-02-L-RA-LC Details

Manufacturer Part Number:
PET-04-02-L-RA-LC
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
3 Weeks
Manufacturer:
Samtec Inc
YTEOL:
7
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
4

PET-04-02-L-RA-LC Frequently Asked Questions (FAQs)

The recommended torque for the screw locks on PET-04-02-L-RA-LC is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, PET-04-02-L-RA-LC is designed to withstand high-vibration environments. Samtec's ruggedized design and screw-locking mechanism ensure reliable connections in harsh conditions.
The operating temperature range for PET-04-02-L-RA-LC is -40°C to 125°C, making it suitable for a wide range of industrial and commercial applications.
Yes, PET-04-02-L-RA-LC is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated manufacturing systems.
The mating cycle life for PET-04-02-L-RA-LC is 500 cycles minimum, ensuring reliable connections over an extended period.
