PET-08-02-L-RA-LC - SAMTEC

Description: 8 Position Header, Male Blades Connector Solder 0.250" (6.35mm) Board Edge, Through Hole, Right Angle

Download PET-08-02-L-RA-LC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PET-08-02-L-RA-LC - SAMTEC - PCB symbol
click to zoom
PCB Footprints

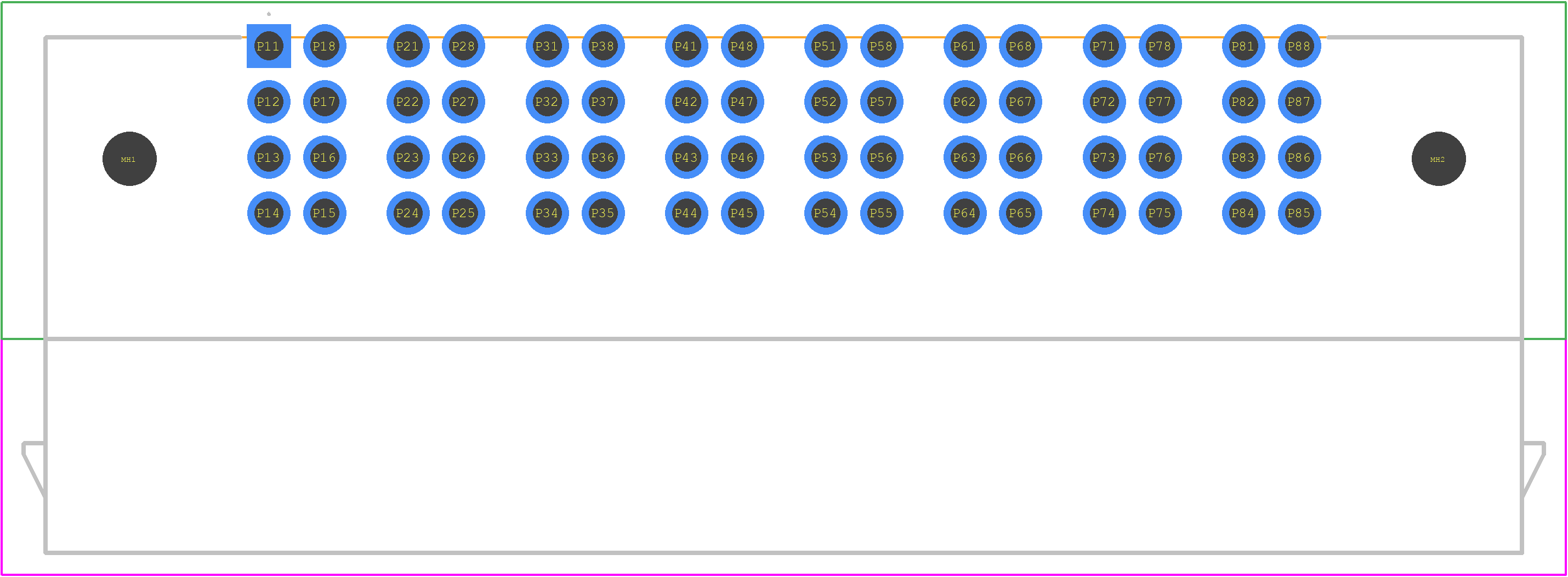

PET-08-02-L-RA-LC - SAMTEC PCB footprint - Other - Other - PET-08-02-L-RA-LC-2
click to zoom
3D Models
PET-08-02-L-RA-LC - SAMTEC - 3D model - Other - PET-08-02-L-RA-LC-2
click to zoom

PET-08-02-L-RA-LC Details

  • Manufacturer Part Number:

    PET-08-02-L-RA-LC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    7

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

PET-08-02-L-RA-LC Frequently Asked Questions (FAQs)

  • The operating temperature range of the PET-08-02-L-RA-LC connector is -40°C to 125°C.
  • Yes, the PET-08-02-L-RA-LC connector is RoHS (Restriction of Hazardous Substances) compliant, meeting the EU's directive for environmentally friendly products.
  • The mating cycle life of the PET-08-02-L-RA-LC connector is 100 cycles minimum, ensuring reliable connections over multiple uses.
  • Yes, the PET-08-02-L-RA-LC connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial control systems, automotive, and aerospace.
  • Yes, the PET-08-02-L-RA-LC connector is designed for automated assembly, featuring a pick-and-place compatible design and tape-and-reel packaging for efficient manufacturing.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PET-08-02-L-RA-LC Overview

Use the download button to access the PET-08-02-L-RA-LC schematic symbol, PCB footprint, and 3D model.
