PET-08-02-L-VT-LC footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

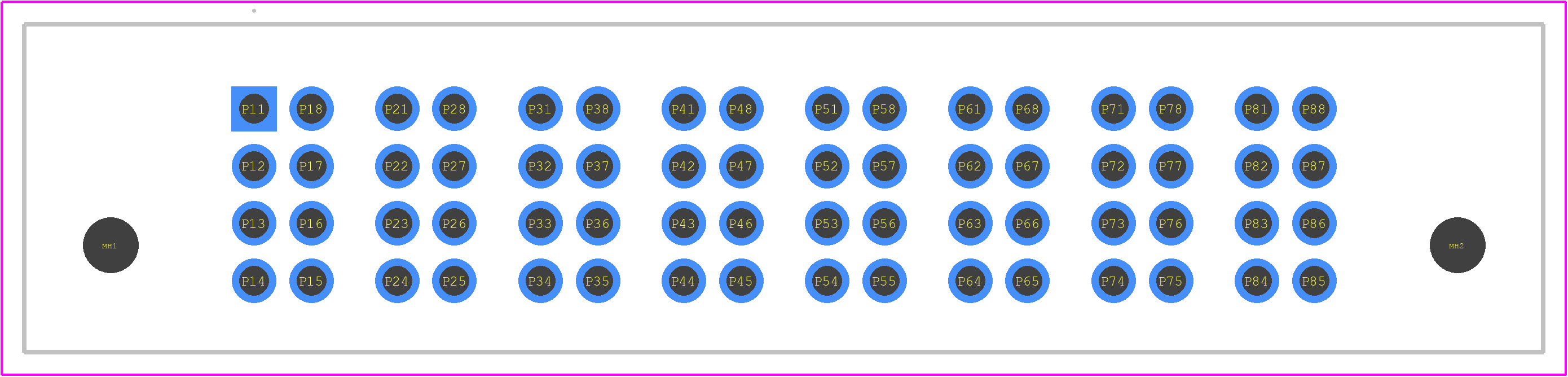

PET-08-02-L-VT-LC - SAMTEC PCB footprint - Other - Other - PET-08-02-L-VT-LC-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PET-08-02-L-VT-LC
Part Number PET-08-02-L-VT-LC
Manufacturer SAMTEC
Pin Count 64
Part Category Connector
Package Category Other
Footprint Name Other - PET-08-02-L-VT-LC-1
Released Date Oct 10, 2025
Last Modified Date Oct 10, 2025 2:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PET-08-02-L-VT-LC Details

Manufacturer Part Number:
PET-08-02-L-VT-LC
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
RATED CURRENT(POWER): 40A
Body Breadth:
0.571 inch
Body Depth:
0.575 inch
Body Length:
2.729 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Gender:
FEMALE
Contact Style:
BLADE PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
8

PET-08-02-L-VT-LC Frequently Asked Questions (FAQs)

The recommended torque for the screw locks on PET-08-02-L-VT-LC is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, PET-08-02-L-VT-LC is designed to withstand high-vibration environments. Samtec's testing shows that it can withstand up to 20 G of vibration in the Z-axis and 10 G in the X and Y axes.
The maximum operating temperature for PET-08-02-L-VT-LC is 125°C (257°F), although it can withstand short-term excursions up to 150°C (302°F) according to Samtec's specifications.
Yes, PET-08-02-L-VT-LC is compatible with lead-free soldering processes. Samtec recommends using a peak reflow temperature of 260°C (500°F) for lead-free soldering.
The typical mating cycle life for PET-08-02-L-VT-LC is 500-1000 cycles, depending on the application and environmental conditions, according to Samtec's testing and application notes.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PET-08-02-L-VT-LC Overview

Use the download button to access the PET-08-02-L-VT-LC schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PET-0, or try a keyword search, such as Power Connectors
