PF-NT2-80 Frequently Asked Questions (FAQs)

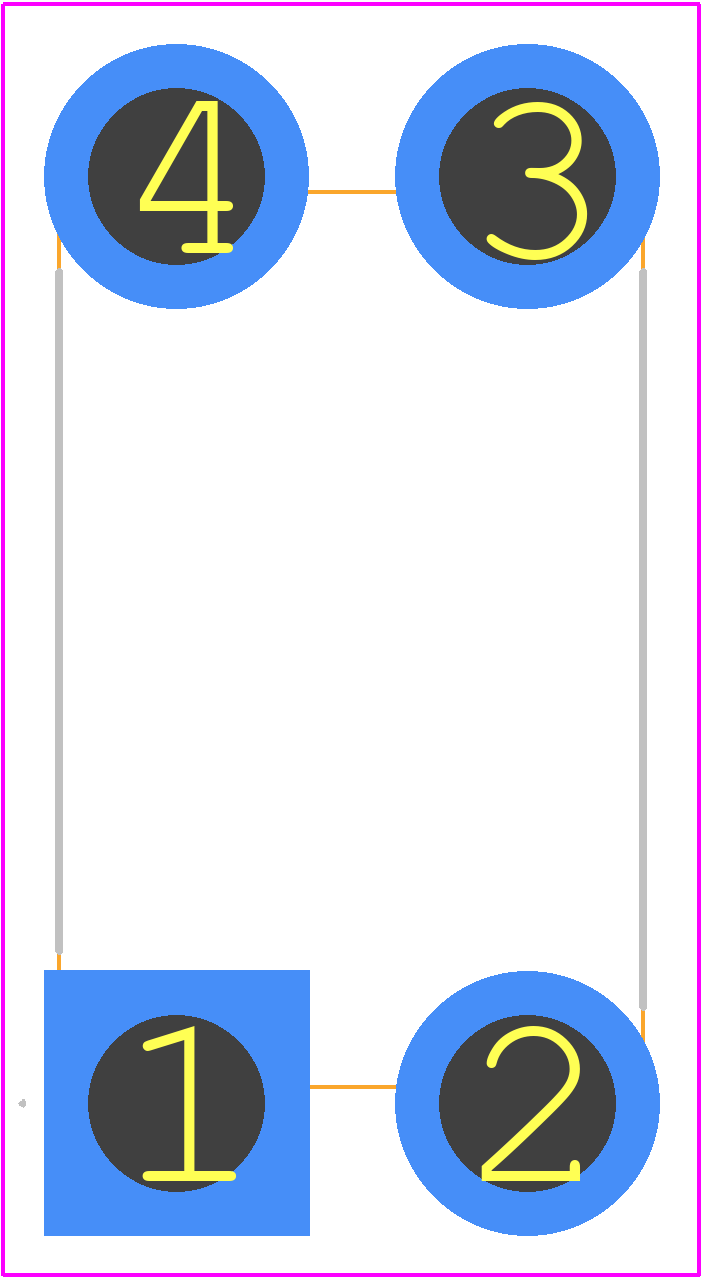

• What is the recommended PCB layout for optimal performance of the PF-NT2-80?
  Bourns recommends a symmetrical PCB layout with the fuse placed close to the power source, and the traces should be as short and wide as possible to minimize voltage drops and inductance.
• How does the PF-NT2-80 behave in high-temperature environments?
  The PF-NT2-80 is designed to operate up to 125°C, but its performance may degrade above 100°C. It's essential to consider derating the fuse's current rating and ensuring proper cooling in high-temperature applications.
• Can the PF-NT2-80 be used in high-vibration or shock-prone environments?
  Yes, the PF-NT2-80 is designed to withstand vibrations and shocks. However, it's crucial to ensure the fuse is properly mounted and secured to the PCB to prevent mechanical stress and damage.
• What is the recommended soldering profile for the PF-NT2-80?
  Bourns recommends a soldering profile with a peak temperature of 260°C (500°F) for 10-15 seconds, and a minimum soldering time of 3-5 seconds to ensure reliable connections.
• How does the PF-NT2-80 respond to inrush currents?
  The PF-NT2-80 is designed to handle inrush currents, but it's essential to consider the fuse's I²t rating and the system's inrush current profile to ensure the fuse doesn't trip unnecessarily.
