TDK recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. The component should be placed near the input capacitors, and the output capacitors should be placed close to the load. A thermal via under the component is also recommended for heat dissipation.
To ensure reliability, it's essential to follow the recommended derating guidelines for temperature and power handling. Additionally, consider using a thermal interface material (TIM) between the component and the heat sink, and ensure good airflow around the component. Regular cleaning and maintenance of the component and surrounding area can also help prevent reliability issues.
The maximum allowed voltage stress on the PFC2723ER-601K02B-00 is 450V, as specified in the datasheet. However, it's recommended to limit the voltage stress to 400V or less to ensure reliable operation and prevent damage to the component.
Yes, the PFC2723ER-601K02B-00 is designed to handle high dV/dt (rate of change of voltage) conditions. However, it's essential to follow the recommended layout and design guidelines to minimize parasitic inductance and ensure reliable operation. Additionally, consider using a snubber circuit or other dV/dt mitigation techniques to reduce the voltage stress on the component.
To troubleshoot issues with the PFC2723ER-601K02B-00, start by checking the input and output voltage levels, as well as the current drawn from the input. Verify that the component is properly soldered and that there are no signs of physical damage. Check the PCB layout and design for any potential issues, such as poor thermal management or inadequate decoupling. If the issue persists, consider consulting the datasheet or contacting TDK's technical support team for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PFC2723ER-601K02B-00 Overview

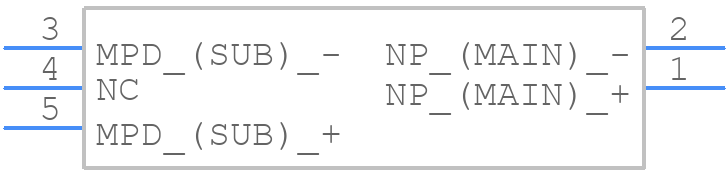

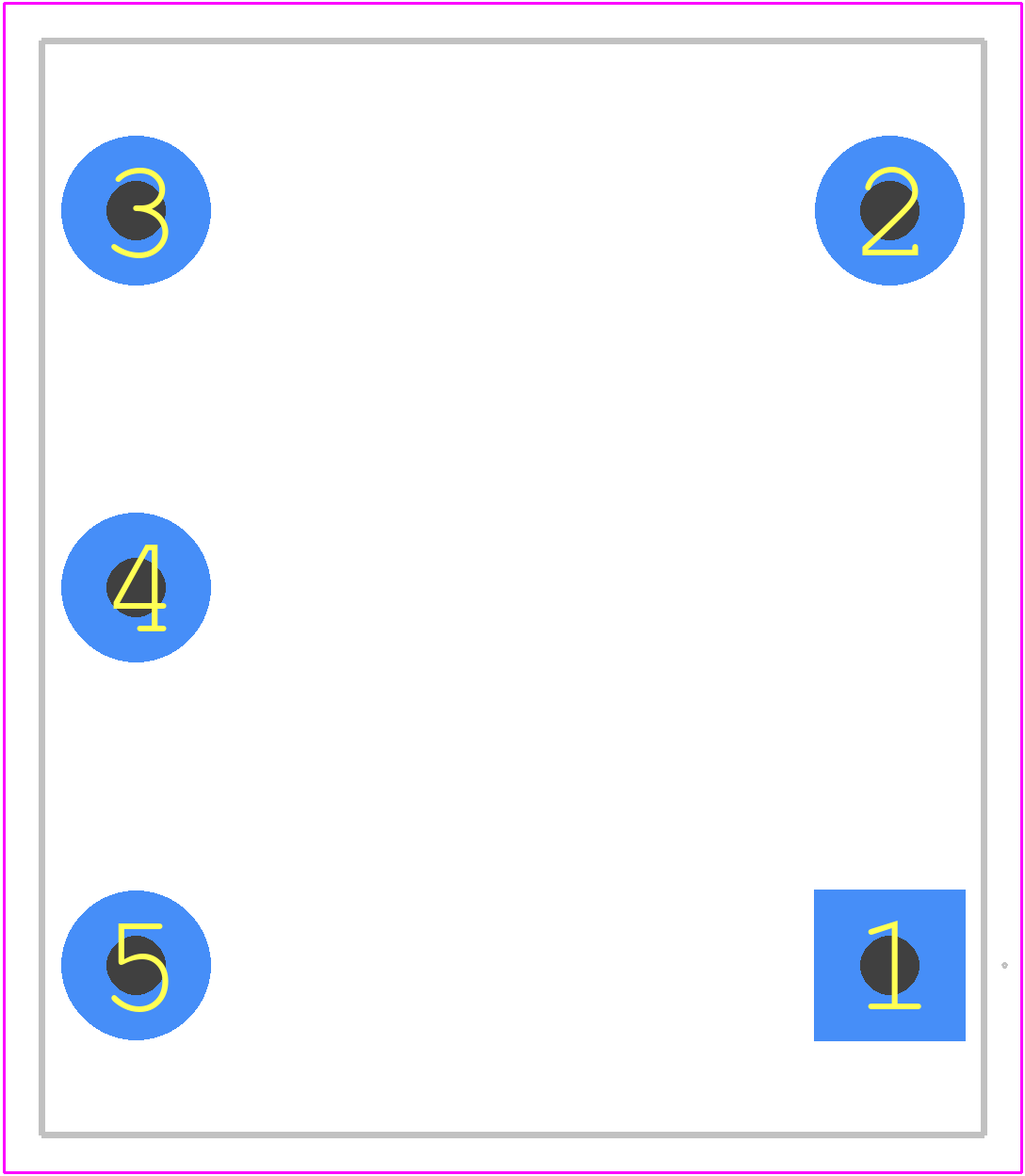

Use the download button to access the PFC2723ER-601K02B-00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PFC27,
or try a keyword search, such as Fixed Inductors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
