PFE700SA-48 - TDK Lambda

Description: AC-DC Power Supplies, Power module type, Output: 714W, 51V, Standard type

Download PFE700SA-48 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

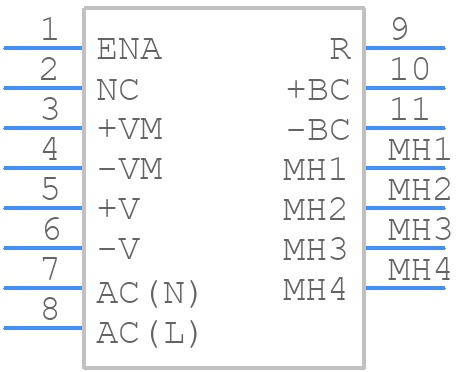

Symbol
PFE700SA-48 - TDK Lambda - PCB symbol
click to zoom

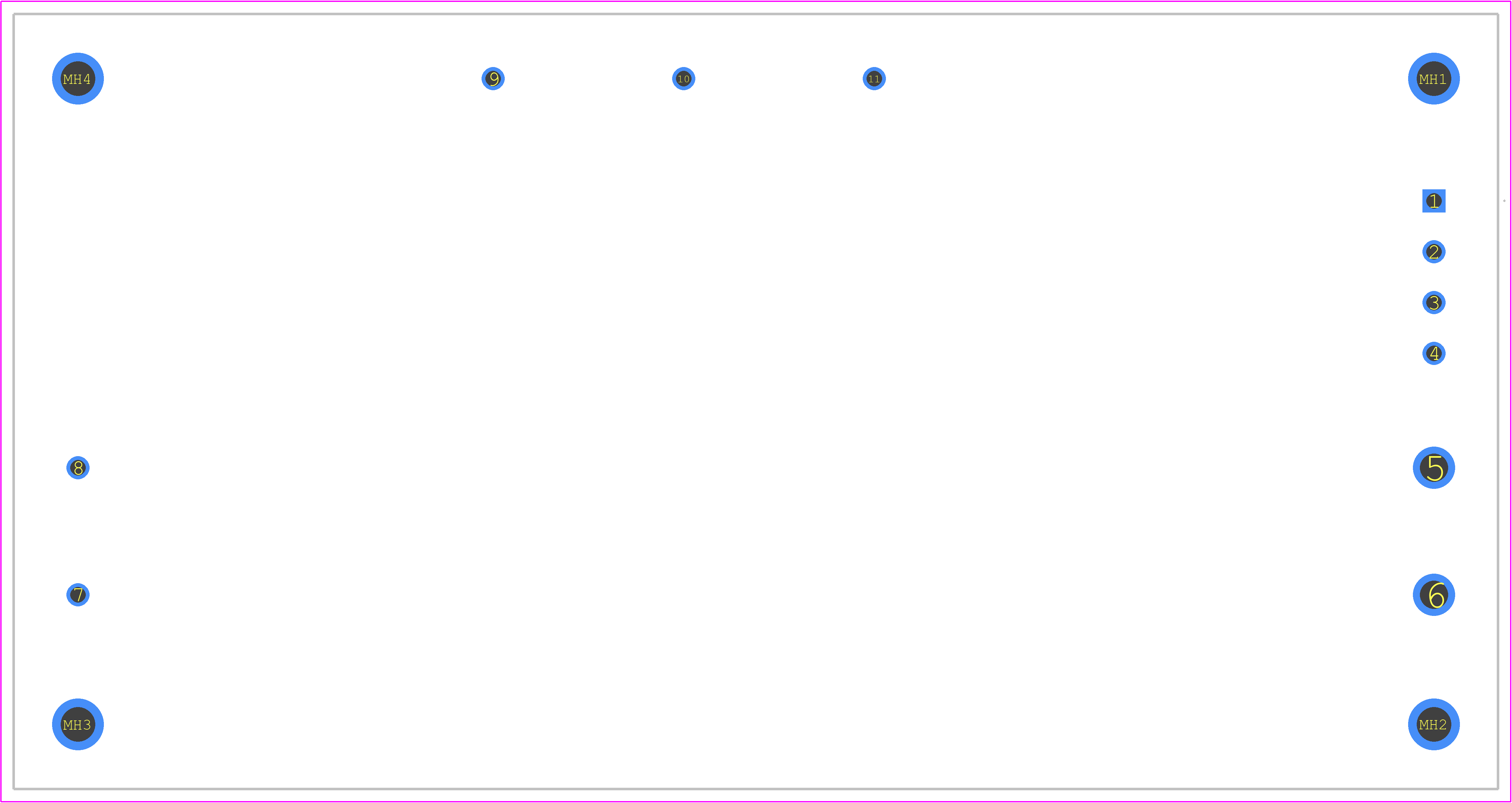

PCB Footprints
PFE700SA-48 - TDK Lambda PCB footprint - Other - Other - PFE700SA-48
click to zoom
3D Models
PFE700SA-48 - TDK Lambda - 3D model - Other - PFE700SA-48
click to zoom

PFE700SA-48 Details

  • Manufacturer Part Number:

    PFE700SA-48

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    PACKAGE

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    265 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    100 V

  • JESD-30 Code:

    X-XXMA-X

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Output Voltage-Nom:

    51 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    UNSPECIFIED

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    714 W

  • Trim/Adjustable Output:

    YES

PFE700SA-48 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the PFE700SA-48 is -20°C to +80°C, with a derating of 2.5% per °C above 50°C.
  • Yes, the PFE700SA-48 can be used in a redundant configuration to provide N+1 redundancy, ensuring high system availability.
  • The hold-up time for the PFE700SA-48 is 12ms, which is the time the power supply can maintain output voltage regulation in the event of an input power failure.
  • Yes, the PFE700SA-48 is compliant with safety standards such as UL60950-1, EN60950-1, and IEC60950-1, ensuring safe operation in a variety of environments.
  • Yes, the PFE700SA-48 can be used in high-altitude environments up to 5,000 meters (16,400 ft) above sea level, with a derating of 1% per 1,000 meters above sea level.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PFE700SA-48 Overview

Use the download button to access the PFE700SA-48 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PFE70, or try a keyword search, such as Power Supply Modules
