Power Integrations provides a recommended PCB layout in their application notes (e.g., AN-63) and evaluation board designs. Key considerations include keeping the high-current paths short, using thermal vias, and ensuring good heat sinking.
To ensure reliable start-up and shutdown, follow the recommended soft-start and shutdown procedures outlined in the datasheet. Additionally, ensure that the input voltage rises and falls monotonically, and that the output voltage is properly monitored and controlled.
Operating the PFS7536H at high ambient temperatures can reduce its reliability and lifespan. Ensure that the device is properly heat-sunk and that the maximum junction temperature (Tj) is not exceeded. Derate the device's power handling capabilities according to the datasheet's thermal derating curves.
Use a systematic approach to troubleshoot and debug issues, starting with the basics (e.g., input voltage, output voltage, and current). Utilize oscilloscopes and other diagnostic tools to identify the root cause of the issue. Consult Power Integrations' application notes and technical support resources for guidance.
The PFS7536H is designed to meet EMI and EMC standards, but proper PCB layout, component selection, and shielding are still essential. Follow Power Integrations' guidelines for EMI filtering, and ensure that the device is properly decoupled and shielded to minimize radiated emissions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PFS7536H Overview

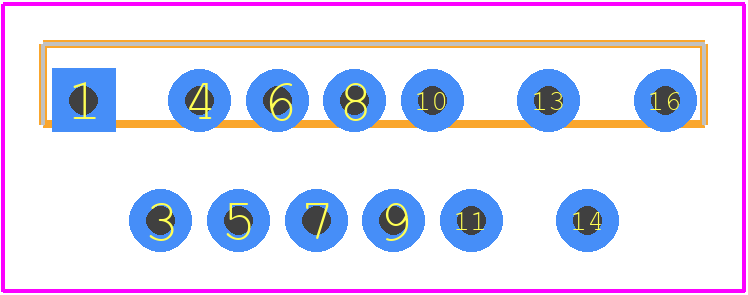

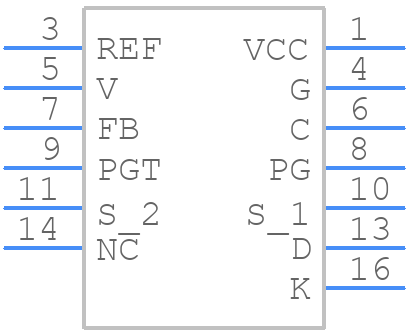

Use the download button to access the PFS7536H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PFS75,
or try a keyword search, such as Switching Regulator or Controllers
