Texas Instruments provides a recommended PCB layout in the PGA112AIDGSTG4 evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The optimal gain setting depends on the specific application requirements. Engineers can use the PGA112AIDGSTG4's programmable gain feature to adjust the gain in 1dB steps from 0dB to 59dB. TI provides a gain setting calculator tool to help determine the optimal gain setting based on input signal amplitude and desired output signal level.
The PGA112AIDGSTG4 can handle input signal amplitudes up to 2.5Vpp differential or 1.25Vpp single-ended. However, the maximum input signal amplitude may be limited by the specific application requirements and the desired signal-to-noise ratio (SNR).
To ensure EMI compliance, engineers should follow proper PCB design and layout practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as needed. TI also provides EMI compliance guidelines and recommendations in the PGA112AIDGSTG4 datasheet and application notes.
The PGA112AIDGSTG4 has a typical power consumption of 12.5mA at 3.3V supply voltage. To optimize power consumption, engineers can use the device's power-down mode, which reduces power consumption to less than 1μA. Additionally, TI provides power-saving modes and recommendations in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PGA112AIDGSTG4 Overview

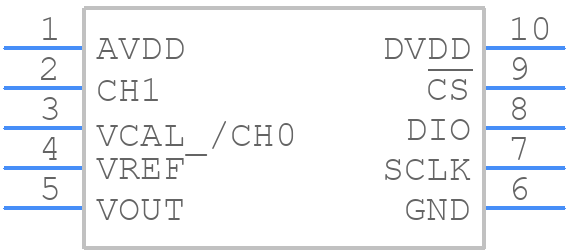

Use the download button to access the PGA112AIDGSTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA11,
or try a keyword search, such as Other Signal Circuits
