PGA113AIDGSTG4 - Texas Instruments

Description: SP Amp Variable Gain Amp Single R-R I/O 5.5V 10-Pin VSSOP T/R

Download PGA113AIDGSTG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

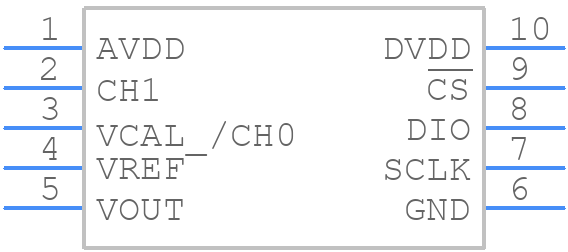

PGA113AIDGSTG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PGA113AIDGSTG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
PGA113AIDGSTG4 - Texas Instruments - 3D model - Small Outline Packages - DGS0010A
click to zoom

PGA113AIDGSTG4 Details

  • Manufacturer Part Number:

    PGA113AIDGSTG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

PGA113AIDGSTG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the PGA113AIDGSTG4 evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The PGA113AIDGSTG4 has a programmable gain amplifier that can be configured using the SPI interface. The gain setting can be programmed using the GAIN[2:0] bits in the CONFIG register. Refer to the datasheet for the gain setting table and programming details.
  • The maximum input voltage that the PGA113AIDGSTG4 can handle is ±VCC (supply voltage) + 0.3V. Exceeding this voltage may damage the device. It's recommended to use input voltage limiting resistors or clamping circuits to prevent overvoltage conditions.
  • To ensure EMC with the PGA113AIDGSTG4, follow proper PCB design and layout practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding or filtering components as needed. Additionally, ensure that the device is properly bypassed and decoupled, and that the power supply is well-regulated.
  • The PGA113AIDGSTG4 has a thermal derating of 13.9 mW/°C above 25°C. This means that the device's power dissipation must be reduced as the ambient temperature increases to prevent overheating and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PGA113AIDGSTG4 Overview

Use the download button to access the PGA113AIDGSTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA11, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
