Texas Instruments provides a recommended PCB layout in the PGA117AIPW evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The optimal gain setting depends on the specific application requirements. Engineers can use the PGA117AIPW's gain adjustment pins to experiment with different gain settings and measure the output signal-to-noise ratio (SNR) to determine the optimal gain for their application.
While the datasheet specifies the maximum input voltage range, the maximum input signal amplitude that the PGA117AIPW can handle depends on the gain setting and the output voltage swing. Engineers should consult the datasheet and application notes for guidance on input signal amplitude limitations.
To ensure EMI compliance, engineers should follow proper PCB layout and design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding or filtering components as needed. Additionally, the PGA117AIPW's built-in EMI filtering capabilities can be optimized by following the recommended layout and component selection guidelines.
Texas Instruments recommends using a combination of ceramic and electrolytic capacitors for power supply decoupling, with a minimum of 10uF of capacitance per power supply pin. The capacitors should be placed as close as possible to the PGA117AIPW's power supply pins to minimize inductance and ensure optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PGA117AIPW Overview

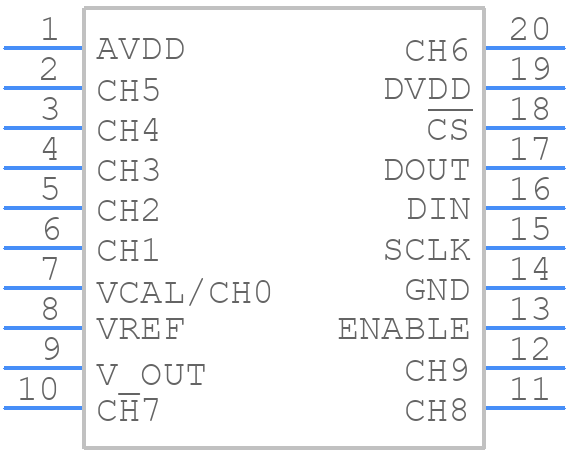

Use the download button to access the PGA117AIPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA11,
or try a keyword search, such as Other Signal Circuits
