PGA2310PA - Texas Instruments

Description: Stereo audio amplifier,PGA2310PA DIP16

Download PGA2310PA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

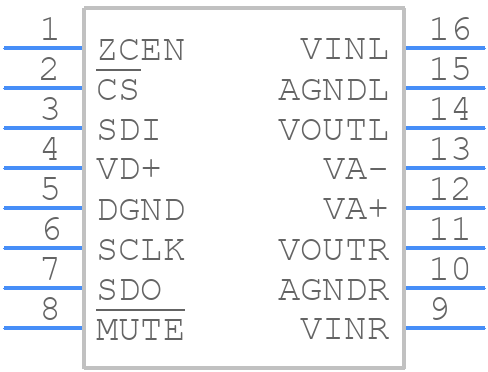

PGA2310PA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PGA2310PA - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PGA2310PA
click to zoom
3D Models
PGA2310PA - Texas Instruments - 3D model - Dual-In-Line Packages - PGA2310PA
click to zoom

PGA2310PA Details

  • Manufacturer Part Number:

    PGA2310PA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    IT ALSO REQUIRES 4.5V TO 5.5V SUPPLY

  • Channel Separation:

    126 dB

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e4

  • Length:

    19.305 mm

  • Number of Bands:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    21.5 mA

  • Supply Voltage-Max (Vsup):

    15.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

PGA2310PA Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the PGA2310PA involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources to minimize noise. TI provides a layout guide in the datasheet and application notes.
  • To optimize the PGA2310PA for low noise and distortion, use a low-ESR capacitor for the power supply, keep the input impedance low, and use a high-quality, low-noise power supply. Additionally, use a shielded enclosure and keep the device away from high-frequency sources.
  • The maximum input signal amplitude that the PGA2310PA can handle is ±10V, but it's recommended to keep the input signal amplitude below ±5V to ensure optimal performance and prevent clipping.
  • The PGA2310PA's gain and offset settings can be programmed using a 3-wire serial interface. The device has a 16-bit gain register and a 16-bit offset register, which can be programmed using a microcontroller or other digital interface.
  • The PGA2310PA's output impedance is typically around 100 ohms. This output impedance can affect the load, especially if the load impedance is low. To minimize the impact, use a buffer amplifier or an op-amp with a low input impedance to drive the load.
