PGA2310UA/1K - Texas Instruments

Description: +/-15V Stereo Audio Volume Control

Download PGA2310UA/1K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

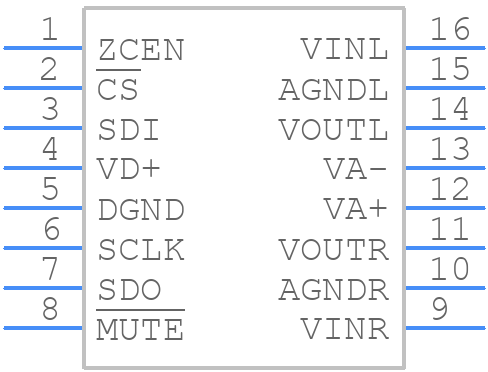

PGA2310UA/1K - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PGA2310UA/1K - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016A
click to zoom
3D Models
PGA2310UA/1K - Texas Instruments - 3D model - Small Outline Packages - DW0016A
click to zoom

PGA2310UA/1K Details

  • Manufacturer Part Number:

    PGA2310UA/1K

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    IT ALSO REQUIRES 4.5V TO 5.5V SUPPLY

  • Channel Separation:

    126 dB

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Bands:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    21.5 mA

  • Supply Voltage-Max (Vsup):

    15.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

PGA2310UA/1K Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the PGA2310UA/1K involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources to minimize noise. TI provides a layout guide in the datasheet and application notes.
  • To optimize the PGA2310UA/1K for low noise and distortion, use a low-ESR capacitor for the power supply, keep the input impedance low, and use a high-PSRR power supply. Additionally, use a low-noise voltage reference and ensure proper PCB layout and grounding.
  • The maximum input signal amplitude that the PGA2310UA/1K can handle is ±10V, but it's recommended to keep the input signal amplitude below ±5V to ensure optimal performance and prevent clipping.
  • The PGA2310UA/1K's gain and offset settings can be programmed using a 3-wire serial interface. The device has a 16-bit gain register and a 16-bit offset register, which can be programmed using a microcontroller or other digital interface.
  • The power consumption of the PGA2310UA/1K depends on the operating mode and supply voltage. In normal operation, the device consumes around 20mA from a 5V supply. In shutdown mode, the current consumption is typically less than 1μA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PGA2310UA/1K Overview

Use the download button to access the PGA2310UA/1K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA23, or try a keyword search, such as Audio Control ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
