PGA2320IDWR - Texas Instruments

Description: Audio Amplifiers .+/-15V Stereo Audio Volume Control

Download PGA2320IDWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

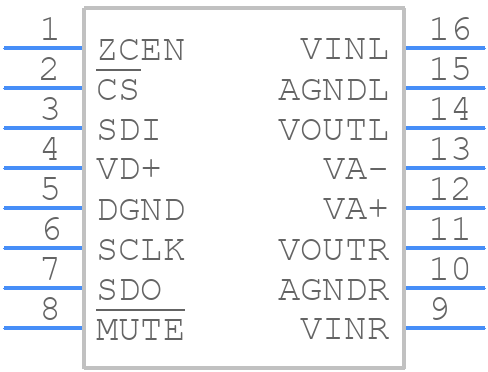

PGA2320IDWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PGA2320IDWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016A
click to zoom
3D Models
PGA2320IDWR - Texas Instruments - 3D model - Small Outline Packages - DW0016A
click to zoom

PGA2320IDWR Details

  • Manufacturer Part Number:

    PGA2320IDWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Channel Separation:

    126 dB

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Max (Vsup):

    15.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

PGA2320IDWR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the device close to the analog signal sources to minimize noise. A detailed layout guide is available in the application note SLAA701.
  • To minimize noise, use a low-ESR capacitor for the AVDD pin, keep the analog and digital grounds separate, and use a ferrite bead or a 10-ohm resistor in series with the AVDD pin. Additionally, use a quiet power supply and avoid running digital signals near the analog signals.
  • The PGA2320IDWR can handle input voltages up to 6V, but the maximum recommended input voltage is 5.5V to ensure reliable operation and to prevent damage to the device.
  • The PGA2320IDWR can be configured for single-ended or differential input modes by setting the IN_MODE pin high or low, respectively. For single-ended mode, connect the input signal to the IN+ pin and tie the IN- pin to ground. For differential mode, connect the differential input signals to the IN+ and IN- pins.
  • The PGA2320IDWR has a gain accuracy of ±0.5dB and a linearity of ±0.1dB over the entire gain range of 0dB to 40dB. The device also has a low gain drift of ±50ppm/°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PGA2320IDWR Overview

Use the download button to access the PGA2320IDWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA23, or try a keyword search, such as Audio Control ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
