PGA300ARHHT - Texas Instruments

Description: Sensor and Detector Interface 30V OWI 36-Pin VQFN EP T/R

Download PGA300ARHHT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

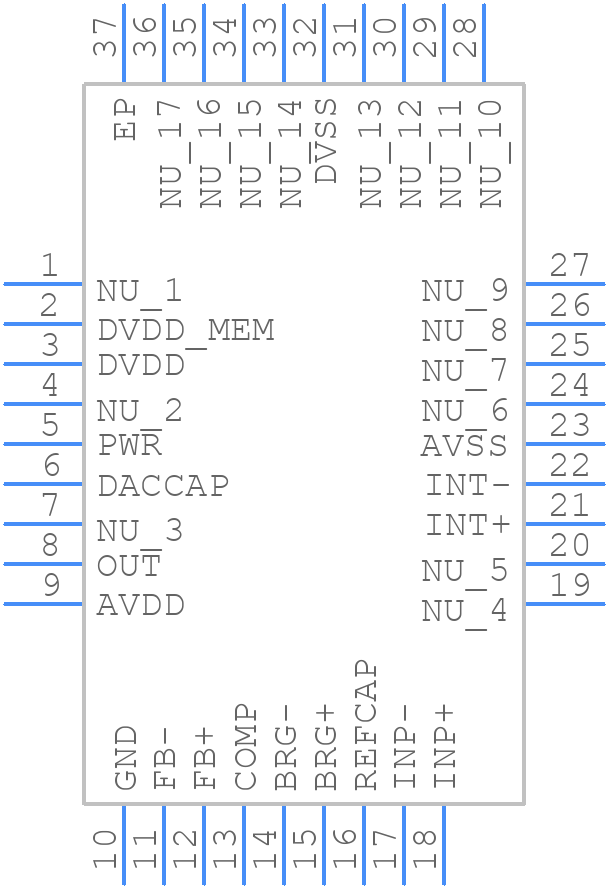

PGA300ARHHT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PGA300ARHHT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHH0036C
click to zoom
3D Models
PGA300ARHHT - Texas Instruments - 3D model - Quad Flat No-Lead - RHH0036C
click to zoom

PGA300ARHHT Details

  • Manufacturer Part Number:

    PGA300ARHHT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-06-09

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    SIGNAL CONDITIONER

  • JESD-30 Code:

    S-PQCC-N36

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.25SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

PGA300ARHHT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the PGA300ARHHT evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The PGA300ARHHT requires a two-point calibration process to set the gain and offset. This involves applying a known input voltage and measuring the output voltage, then adjusting the gain and offset registers accordingly. The calibration process is described in the device's user guide.
  • The PGA300ARHHT has an absolute maximum input voltage rating of 6.5V, but the recommended maximum input voltage is 5.5V to ensure reliable operation and prevent damage to the device.
  • To ensure EMC, follow proper PCB design and layout practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as needed. Additionally, ensure that the PGA300ARHHT is properly decoupled and bypassed to reduce noise and emissions.
  • The PGA300ARHHT has a thermal derating of 1.67mW/°C above 25°C, which means that the device's power dissipation must be reduced as the ambient temperature increases to prevent overheating and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PGA300ARHHT Overview

Use the download button to access the PGA300ARHHT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA30, or try a keyword search, such as Other Interface ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
