Texas Instruments provides a recommended PCB layout in the PGA305ARHHR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The PGA305ARHHR has a programmable gain and offset, which can be optimized using the TI-provided software tools, such as the PGA305ARHHR Evaluation Software, or by using the device's internal calibration registers. Consult the device's user guide and application notes for more information.
While the datasheet specifies the recommended input voltage range, the absolute maximum input voltage range is typically not specified. According to TI's application notes, the PGA305ARHHR can tolerate input voltages up to ±25V, but this should be verified with TI support or through further testing.
To ensure EMC, follow proper PCB design and layout practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding or filtering components as needed. Additionally, consult TI's EMC guidelines and application notes for specific recommendations.
The PGA305ARHHR has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be derated according to the thermal characteristics specified in the datasheet. A general rule of thumb is to derate the device by 1°C/W above 25°C ambient temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PGA305ARHHR Overview

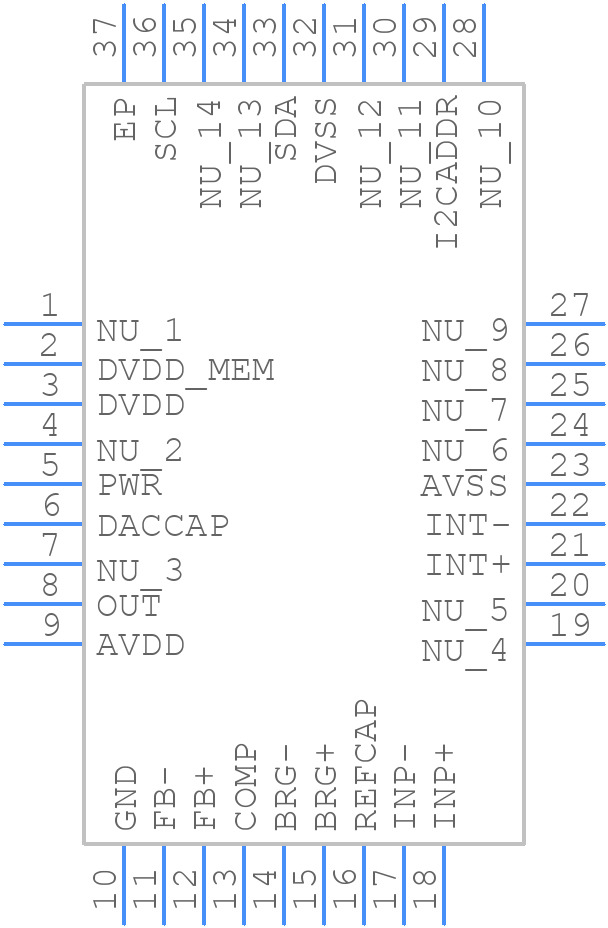

Use the download button to access the PGA305ARHHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA30,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
