PGA308AIDRKT - Texas Instruments

Description: Single Supply, Auto-Zero Sensor Amplifier w/Programmable Gain & Offset

Download PGA308AIDRKT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

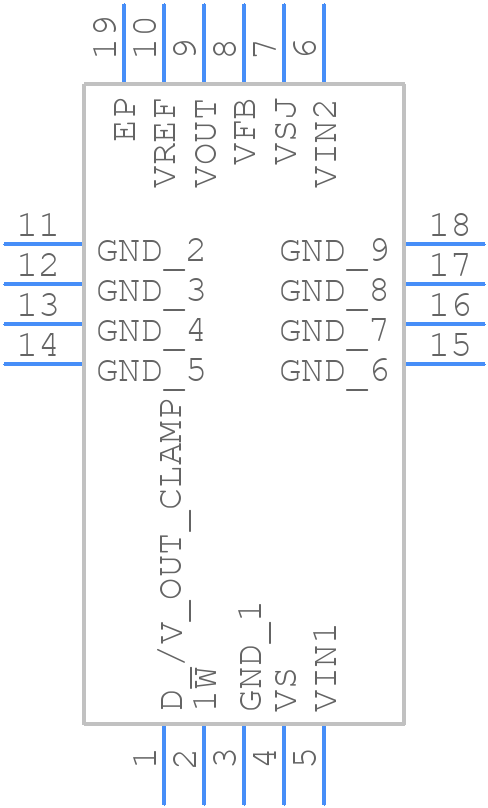

Symbol
PGA308AIDRKT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PGA308AIDRKT - Texas Instruments PCB footprint - Other - Other - PGA308AIDRKT-2
click to zoom
3D Models
PGA308AIDRKT - Texas Instruments - 3D model - Other - PGA308AIDRKT-2
click to zoom

PGA308AIDRKT Details

  • Manufacturer Part Number:

    PGA308AIDRKT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PQCC-N10

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    SOLCC10,.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

PGA308AIDRKT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply and keep the power traces away from the analog signals.
  • Handle the device by the body, not the pins. Use an anti-static wrist strap or mat to prevent electrostatic discharge. Avoid bending or flexing the pins, and use a soldering iron with a temperature-controlled tip to prevent overheating.
  • The recommended input signal range is between 100 mV and 5 V. Signals outside this range may not be accurately amplified or may cause the device to saturate.
  • Use the gain setting formula provided in the datasheet to calculate the optimal gain for your application. Consider factors such as signal amplitude, noise floor, and desired output level. You may need to experiment with different gain settings to find the optimal value for your specific use case.
  • Use a 10 μF ceramic capacitor in parallel with a 100 nF ceramic capacitor, both connected between the power supply pins and ground. This will help to filter out noise and ensure stable operation.
