PGA309ASPWT - Texas Instruments

Description: Voltage Output Programmable Sensor Conditioner, PGA309-HT

Download PGA309ASPWT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

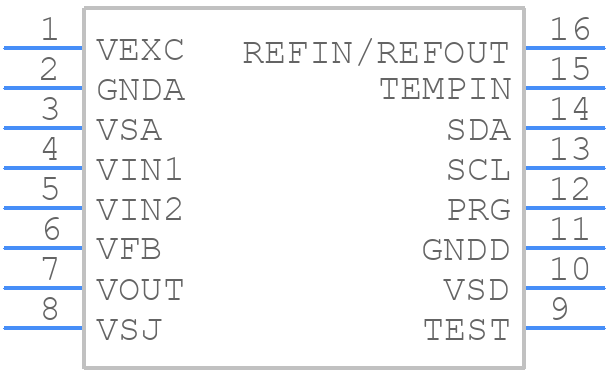

PGA309ASPWT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PGA309ASPWT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW
click to zoom
3D Models
PGA309ASPWT - Texas Instruments - 3D model - Small Outline Packages - PW
click to zoom

PGA309ASPWT Details

  • Manufacturer Part Number:

    PGA309ASPWT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PGA309ASPWT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog and digital power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for power decoupling.
  • Handle the device by the body, not the leads. Use an anti-static wrist strap or mat to prevent electrostatic discharge. Avoid bending or flexing the leads, and use a soldering iron with a temperature-controlled tip to prevent overheating.
  • The recommended input signal range is 0 to 5V, with a maximum input voltage of 6V. Signals exceeding 5V may cause the device to saturate or become unstable.
  • Use the internal gain and offset adjustment pins to optimize the gain and offset. The gain can be adjusted from 1 to 128, and the offset can be adjusted from -2.5V to 2.5V. Refer to the datasheet for specific pin connections and adjustment procedures.
  • Use a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, both connected between the power supply pins and ground. This will help to filter out noise and ensure stable operation.
