PGA4311U/1K - Texas Instruments

Description: Audio Amp Speaker 4-CH Stereo Class-AB 28-Pin SOIC T/R

Download PGA4311U/1K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

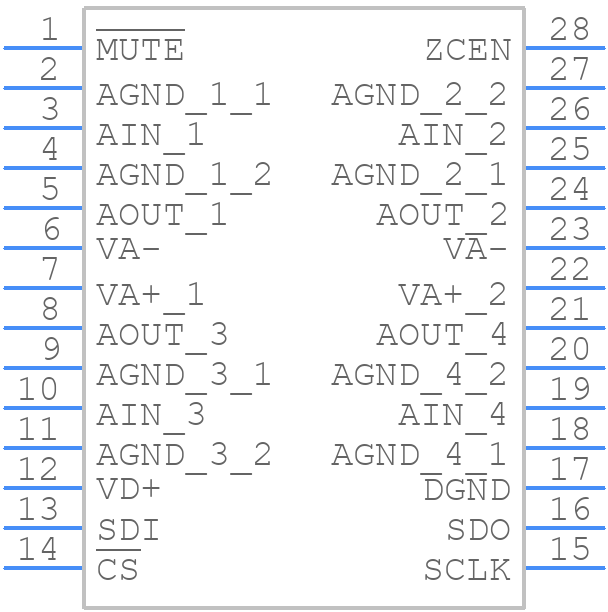

PGA4311U/1K - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PGA4311U/1K - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G28)
click to zoom
3D Models
PGA4311U/1K - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G28)
click to zoom

PGA4311U/1K Details

  • Manufacturer Part Number:

    PGA4311U/1K

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Channel Separation:

    130 dB

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.905 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    47 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

PGA4311U/1K Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and keep the input and output traces short and symmetrical.
  • To ensure stability, ensure that the gain-setting resistors are of high precision and low tolerance. Also, use a low-ESR capacitor for the compensation capacitor (Ccomp) and place it close to the device. Additionally, minimize the distance between the device and the gain-setting resistors.
  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The PGA4311U/1K has a thermal pad that must be connected to a solid ground plane to dissipate heat. Ensure good thermal conductivity between the device and the PCB. Also, avoid placing heat-sensitive components near the device.
  • Use a TVS (Transient Voltage Suppressor) diode or a zener diode with a low capacitance value to protect the device from ESD. Place the ESD protection device close to the input pins and ensure that it does not affect the signal integrity.
