The recommended layout and placement for the PGA4311UA involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources to minimize noise. A 4-layer PCB with a dedicated analog ground plane is recommended.
To optimize the PGA4311UA for low noise performance, use a low-noise power supply, minimize the distance between the device and the analog signal sources, use a solid ground plane, and avoid running digital signals near the analog signals. Additionally, use a capacitor between the VCC and GND pins to filter out high-frequency noise.
The maximum input voltage that the PGA4311UA can handle is ±10V, but it's recommended to keep the input voltage within ±5V to ensure optimal performance and prevent damage to the device.
The PGA4311UA can be programmed for different gain settings using the G0, G1, and G2 pins. The gain settings can be selected by connecting these pins to VCC, GND, or leaving them open. The gain settings can also be changed dynamically using an external microcontroller or digital signal.
The recommended operating temperature range for the PGA4311UA is -40°C to 125°C. However, the device can operate up to 150°C with reduced performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PGA4311UA Overview

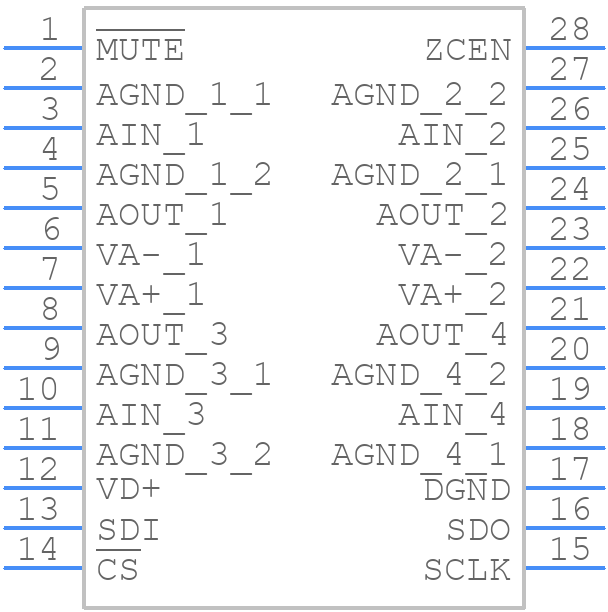

Use the download button to access the PGA4311UA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA43,
or try a keyword search, such as Audio Control ICs
