PHA-83W+ - Mini-Circuits

Description: Ultra High Dynamic Range Monolithic Amplifier, 50Ω

Download PHA-83W+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

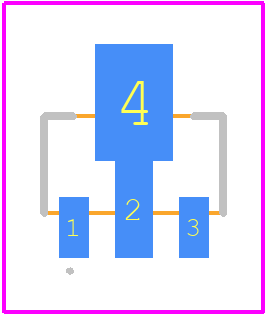

PHA-83W+ - Mini-Circuits PCB footprint - Other - Other - PHA-83W+-3
click to zoom
3D Models
PHA-83W+ - Mini-Circuits  - 3D model - Other - PHA-83W+-3
click to zoom

PHA-83W+ Details

  • Manufacturer Part Number:

    PHA-83W+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-89

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.83

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    13.7 dB

  • Input Power-Max (CW):

    18 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    MATTE TIN

PHA-83W+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a via-stitched ground plane on the top layer. The amplifier should be placed near the edge of the board to minimize noise coupling. A low-impedance path to ground is essential for the amplifier's input and output pins.
  • To achieve the best possible noise figure, ensure that the input is properly matched to 50 ohms, and use a high-quality, low-noise power supply. Additionally, keep the amplifier away from noise sources, and use proper shielding and filtering to minimize electromagnetic interference.
  • The maximum safe operating temperature for the PHA-83W+ is 85°C. Operating the amplifier above this temperature can reduce its reliability and lifespan.
  • While the PHA-83W+ is designed for 50 ohm systems, it can be used in non-50 ohm systems with proper impedance matching. However, this may affect the amplifier's performance, and additional circuitry may be required to achieve optimal results.
  • To troubleshoot common issues with the PHA-83W+, start by checking the PCB layout and grounding scheme for any errors or omissions. Ensure that the input and output pins are properly terminated, and that the power supply is clean and stable. If the issue persists, consult the datasheet and application notes for guidance, or contact Mini-Circuits' technical support team for assistance.
