Texas Instruments provides a recommended PCB layout in the PHDC2021DEBT datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling.
To ensure accurate temperature measurement, it's crucial to calibrate the device, use a high-quality thermistor, and maintain good thermal contact between the thermistor and the device. Additionally, consider using a thermistor with a high accuracy rating and a low thermal time constant.
The maximum cable length for the I2C interface depends on the clock frequency, cable capacitance, and noise environment. As a general rule, keep the cable length as short as possible (less than 10 inches) and use a shielded cable to minimize noise and signal degradation.
The PHDC2021DEBT has a built-in power-on reset (POR) and brown-out detection (BOD) circuitry. To handle POR and BOD, ensure that the power supply is stable and within the recommended operating range. You can also use external circuitry to detect and respond to power failures and brown-out conditions.
The recommended operating temperature range for the PHDC2021DEBT is -40°C to 125°C. However, the device can operate beyond this range, but with reduced accuracy and reliability. Always check the datasheet for specific temperature-related specifications and limitations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PHDC2021DEBT Overview

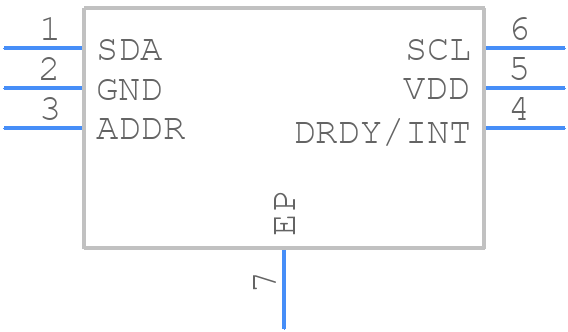

Use the download button to access the PHDC2021DEBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PHDC2,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
