PHPT610030NKX - Nexperia

Description: Bipolar Transistors - BJT NPN/NPN high power double bipolar trans

Download PHPT610030NKX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

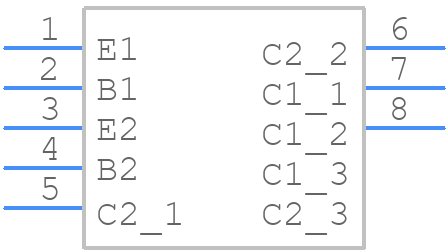

Symbol
PHPT610030NKX - Nexperia - PCB symbol
click to zoom
PCB Footprints
PHPT610030NKX - Nexperia PCB footprint - Other - Other - SOT1205_2022
click to zoom
3D Models
PHPT610030NKX - Nexperia - 3D model - Other - SOT1205_2022
click to zoom

PHPT610030NKX Details

  • Manufacturer Part Number:

    PHPT610030NKX

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFPAK56D, SOT-1205, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT1205

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    4

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    3 A

  • Collector-Base Capacitance-Max:

    11 pF

  • Collector-Emitter Voltage-Max:

    100 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    10

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    5 W

  • Reference Standard:

    IEC-60134

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    140 MHz

  • VCEsat-Max:

    0.33 V

PHPT610030NKX Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the PHPT610030NKX is a 3-pin SOT23 package with a minimum pad size of 0.8 mm x 0.8 mm and a thermal pad size of 2.5 mm x 2.5 mm.
  • To ensure proper biasing, connect the input pin (pin 1) to a voltage source through a resistor (e.g., 1 kΩ) and decouple the output pin (pin 3) with a capacitor (e.g., 100 nF) to ground. Also, ensure the output pin is not loaded with a high impedance.
  • The PHPT610030NKX can operate safely within a temperature range of -40°C to 150°C (junction temperature). However, for optimal performance, it is recommended to operate within a temperature range of -20°C to 85°C.
  • To prevent electrostatic discharge (ESD) damage, handle the PHPT610030NKX with an ESD wrist strap or mat, and ensure the PCB is designed with ESD protection in mind, such as using ESD diodes or resistors.
  • Store the PHPT610030NKX in a dry, cool place (temperature range: 5°C to 30°C) with relative humidity below 60%. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PHPT610030NKX Overview

Use the download button to access the PHPT610030NKX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PHPT6, or try a keyword search, such as Power Bipolar Transistors

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
