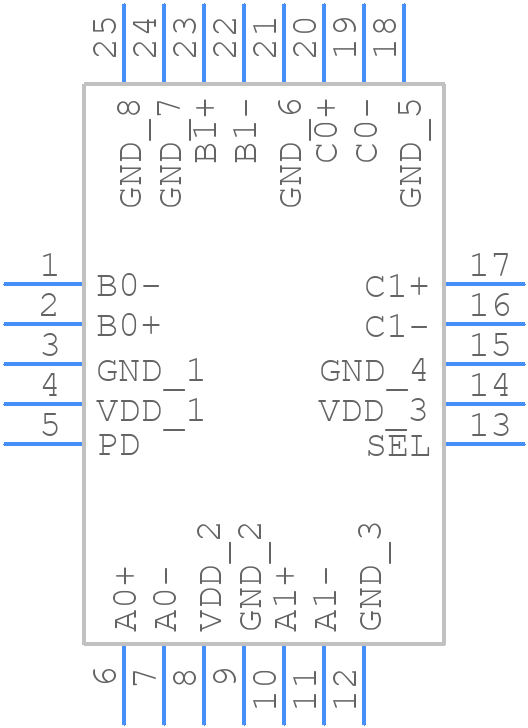

PI2DBS32212XEBEX - Diodes Incorporated

PI2DBS32212XEBEX Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the PI2DBS32212XEBEX?
  A good PCB layout for the PI2DBS32212XEBEX involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
• How do I ensure the PI2DBS32212XEBEX is properly powered on and off?
  To ensure proper power-on and power-off sequencing, the PI2DBS32212XEBEX requires a controlled power-up and power-down sequence. The VCC pin should be powered up first, followed by the VDDQ pin. During power-down, the VDDQ pin should be powered down first, followed by the VCC pin.
• What is the maximum operating frequency of the PI2DBS32212XEBEX?
  The maximum operating frequency of the PI2DBS32212XEBEX is 100 MHz. However, the actual operating frequency may be limited by the system's signal integrity and the quality of the PCB layout.
• How do I handle thermal management for the PI2DBS32212XEBEX?
  The PI2DBS32212XEBEX has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be mounted on a PCB with a thermal pad connected to a solid ground plane. A heat sink or thermal interface material may be required for high-power applications.
• What is the recommended termination scheme for the PI2DBS32212XEBEX?
  The PI2DBS32212XEBEX requires a termination scheme that matches the impedance of the transmission line. A series termination resistor (Rs) of 50-60 ohms is recommended, along with a parallel termination capacitor (Ct) of 10-20 pF.
