Diodes Incorporated provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance, low power consumption, and high reliability.
The PI2DPX2020FLAEX has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB. This helps to dissipate heat efficiently. Additionally, ensure good airflow around the device, and consider using thermal interface materials or heat sinks if necessary.
The PI2DPX2020FLAEX has an operating temperature range of -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Always check the datasheet for specific temperature-related specifications and guidelines.
The PI2DPX2020FLAEX requires a 1.8V to 3.3V power supply, and it's essential to ensure a stable and clean power source. Use a suitable voltage regulator, decoupling capacitors, and follow the recommended power-up and power-down sequences to prevent damage or malfunction.
The PI2DPX2020FLAEX has built-in ESD protection, but it's still essential to handle the device with care. Use anti-static wrist straps, mats, and packaging materials, and avoid touching the device's pins or exposed pads. Follow standard ESD handling procedures to prevent damage or degradation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI2DPX2020FLAEX Overview

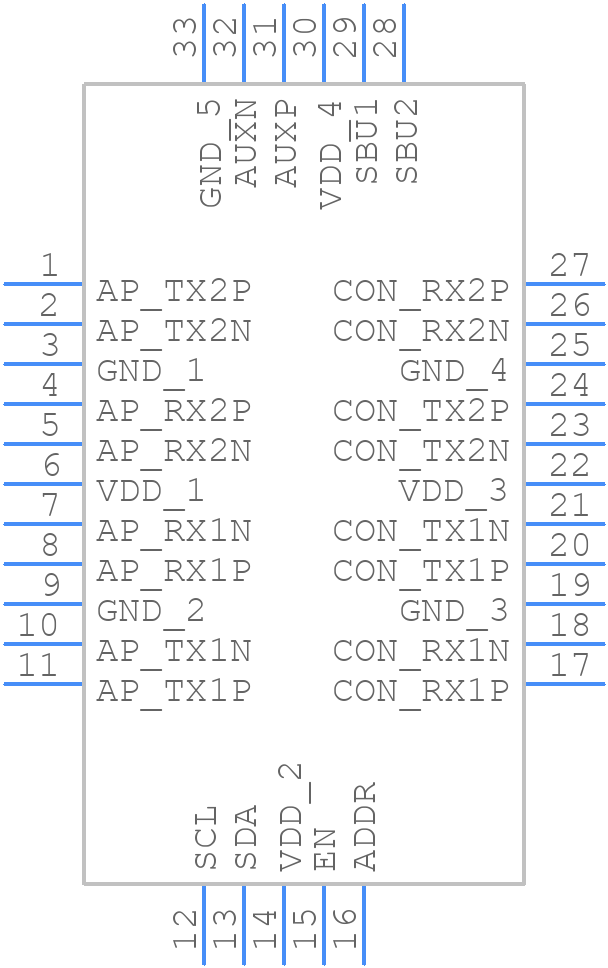

Use the download button to access the PI2DPX2020FLAEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI2DP,
or try a keyword search, such as Line Driver or Receivers
