PI3109-01-HVIZ - VICOR

Description: Isolated DC/DC Converters 24V/5V 50W ISO DC-DC CONVT

Download PI3109-01-HVIZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

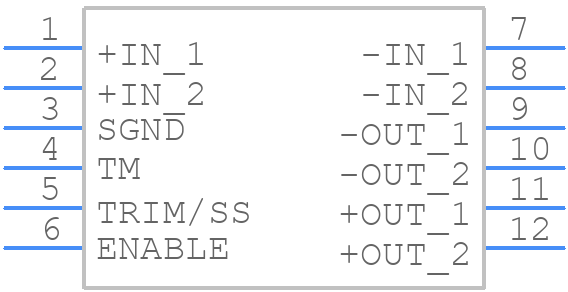

Symbol
PI3109-01-HVIZ - VICOR - PCB symbol
click to zoom

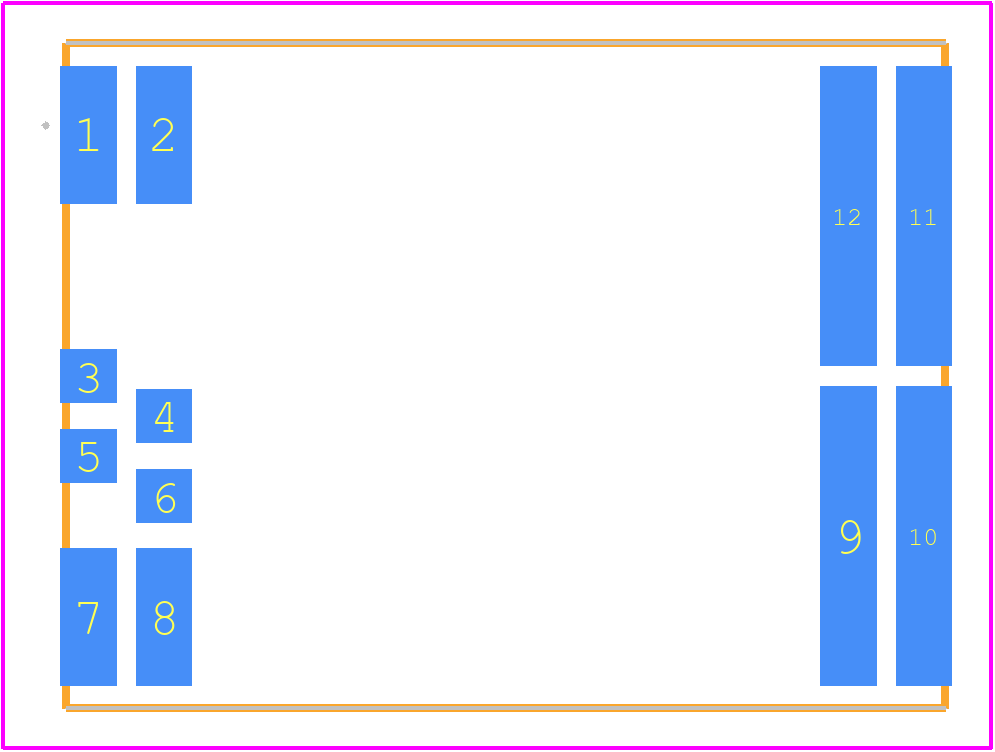

PCB Footprints
PI3109-01-HVIZ - VICOR PCB footprint - Other - Other - PI3109-01-HVIZ-4
click to zoom
3D Models
PI3109-01-HVIZ - VICOR - 3D model - Other - PI3109-01-HVIZ-4
click to zoom

PI3109-01-HVIZ Details

  • Manufacturer Part Number:

    PI3109-01-HVIZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DMA,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-X28

  • Length:

    22 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    4 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    6.98 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    50 W

  • Trim/Adjustable Output:

    YES

  • Width:

    16.5 mm

PI3109-01-HVIZ Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias to dissipate heat. A thermal pad on the bottom of the device should be connected to a heat sink or a thermal interface material.
  • The input voltage range for the PI3109-01-HVIZ is 36-60V. Ensure that the input voltage is within this range to prevent damage to the device. Use voltage regulators or filters if necessary to regulate the input voltage.
  • The maximum output current capability of the PI3109-01-HVIZ is 10A. However, the actual output current may be limited by the input voltage, output voltage, and thermal conditions.
  • The output voltage of the PI3109-01-HVIZ can be configured using the Vout pin. A resistor divider network can be used to set the output voltage between 0.7V to 5.5V.
  • The PI3109-01-HVIZ requires a power sequencing of Vin before Vout. Ensure that the input voltage is applied before the output voltage is enabled.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PI3109-01-HVIZ Overview

Use the download button to access the PI3109-01-HVIZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI310, or try a keyword search, such as Power Supply Modules
