PI3323-00-LGMZ - VICOR

Description: Module DC-DC 24VIN 1-OUT 3.3V 22A Automotive 110-Pin LGA Tray

Download PI3323-00-LGMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PI3323-00-LGMZ - VICOR - PCB symbol
click to zoom
PCB Footprints

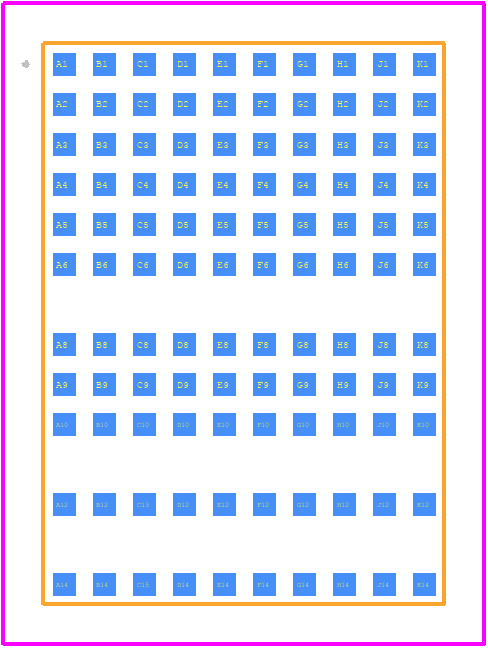

PI3323-00-LGMZ - VICOR PCB footprint - Other - Other - 10 x 14mm LGA_2023
click to zoom
3D Models
PI3323-00-LGMZ - VICOR - 3D model - Other - 10 x 14mm LGA_2023
click to zoom

PI3323-00-LGMZ Details

  • Manufacturer Part Number:

    PI3323-00-LGMZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-140/110

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    0.23

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    14 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XBGA-N110

  • Length:

    14 mm

  • Number of Functions:

    1

  • Number of Terminals:

    110

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    22 A

  • Output Voltage-Max:

    4 V

  • Output Voltage-Min:

    2.2 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LGA

  • Package Equivalence Code:

    LGA110,10X14,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    2.63 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    530 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    10 mm

PI3323-00-LGMZ Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer to ensure good thermal conductivity. A minimum of 2 oz copper thickness is recommended.
  • To ensure reliable start-up, Vicor recommends a soft-start circuit to limit the inrush current, and a minimum input capacitance of 10uF to ensure stable output voltage.
  • The maximum allowed input voltage ripple for the PI3323-00-LGMZ is 10% of the nominal input voltage. Exceeding this limit may affect the module's reliability and performance.
  • The PI3323-00-LGMZ is rated for operation up to 85°C ambient temperature. However, Vicor recommends derating the output power by 1% for every 1°C above 70°C to ensure reliable operation.
  • To troubleshoot output voltage deviations, check the input voltage, output load, and PCB layout for any anomalies. Also, ensure that the module is properly soldered and that the thermal interface material is properly applied.
