Part Image

PI3325-00-LGIZ - VICOR

Description: Switching Voltage Regulators 42Vin to 5Vout 20A Buck Reg

Download PI3325-00-LGIZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PI3325-00-LGIZ - VICOR - PCB symbol
click to zoom
PCB Footprints

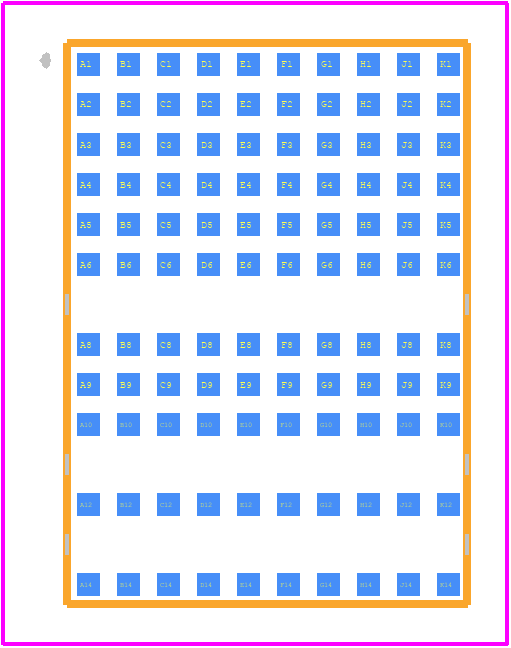

PI3325-00-LGIZ - VICOR PCB footprint - Other - Other - PI3325-00-LGIZ-2
click to zoom
3D Models
PI3325-00-LGIZ - VICOR - 3D model - Other - PI3325-00-LGIZ-2
click to zoom

PI3325-00-LGIZ Details

  • Manufacturer Part Number:

    PI3325-00-LGIZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-140/110

  • Country Of Origin:

    Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7.6

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    14 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XBGA-N110

  • Length:

    14 mm

  • Number of Functions:

    1

  • Number of Terminals:

    110

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    20 A

  • Output Voltage-Max:

    6.5 V

  • Output Voltage-Min:

    4 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LGA

  • Package Equivalence Code:

    LGA110,10X14,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    2.63 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    636 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    10 mm

PI3325-00-LGIZ Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A thermal interface material (TIM) should be used between the module and the heat sink.
  • To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a voltage supervisor to monitor the input voltage and ensure the module is fully powered before enabling the output.
  • Input voltage transients can affect the module's performance and reliability. Vicor recommends using input capacitors to filter out transients, and ensuring the input voltage is within the specified range to prevent damage to the module.
  • Vicor recommends using the module's trim pin to adjust the output voltage, and selecting the appropriate output capacitor to ensure the desired output ripple and stability.
  • Vicor recommends using a shielded enclosure, and following proper PCB layout and grounding techniques to minimize EMI and RFI emissions. Additionally, the module's switching frequency can be synchronized to minimize EMI.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PI3325-00-LGIZ Overview

Use the download button to access the PI3325-00-LGIZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI332, or try a keyword search, such as Switching Regulator or Controllers
