The recommended PCB layout involves placing the module on a 4-layer board with a solid ground plane, and using thermal vias to dissipate heat. A heat sink or thermal interface material can also be used to improve thermal performance.
To ensure reliable start-up and shutdown, it is recommended to follow a soft-start sequence, gradually increasing the input voltage to the module. Additionally, a voltage supervisor or power-on reset circuit can be used to ensure the module is fully powered up before enabling the output.
The PI3525-00-LGIZ is designed to operate within a specific input voltage range. Operating outside of this range can affect the module's efficiency, output voltage regulation, and reliability. It is essential to ensure the input voltage is within the recommended range to guarantee optimal performance.
To mitigate EMI and EMC issues, it is recommended to use a shielded enclosure, keep the module away from sensitive circuits, and use EMI filters or common-mode chokes on the input and output lines. Additionally, following good PCB layout practices and using a multi-layer board can help reduce EMI emissions.
The PI3525-00-LGIZ has a maximum operating temperature of 100°C. To ensure reliable operation, it is essential to derate the module's output power based on the ambient temperature. The datasheet provides a thermal derating curve to help determine the maximum output power at a given temperature.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3525-00-LGIZ Overview

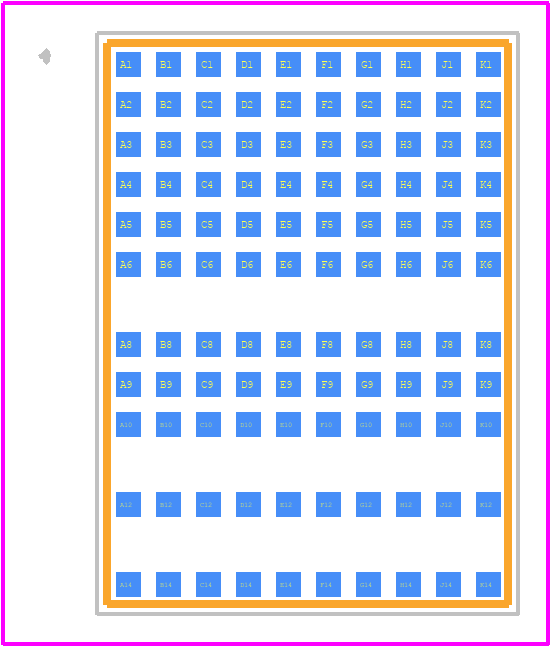

Use the download button to access the PI3525-00-LGIZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI352,
or try a keyword search, such as Switching Regulator or Controllers
