PI3740-00-LGIZ - VICOR

PI3740-00-LGIZ Details

• Manufacturer Part Number:

  PI3740-00-LGIZ

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  28 Weeks

• Date Of Intro:

  2017-06-16

• Manufacturer:

  Vicor Corporation

• YTEOL:

  7

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT/VOLTAGE-MODE

• Input Voltage-Max:

  60 V

• Input Voltage-Min:

  8 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-XBGA-N108

• Length:

  14 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  108

• Operating Temperature-Max:

  115 °C

• Operating Temperature-Min:

  -40 °C

• Output Voltage-Max:

  50 V

• Output Voltage-Min:

  10 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  UNSPECIFIED

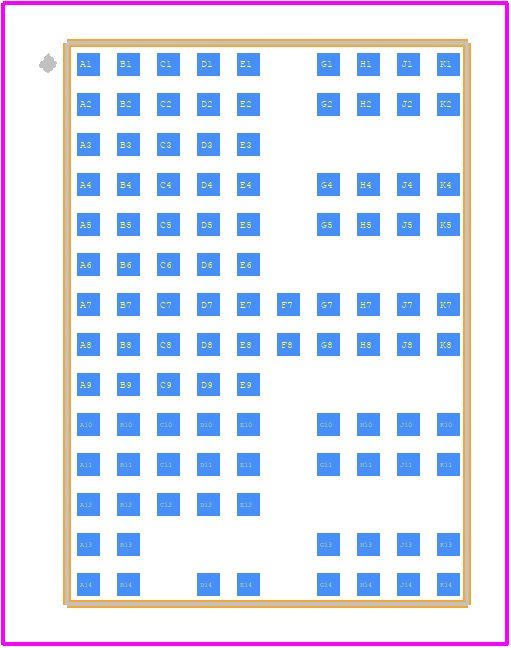

• Package Code:

  LGA

• Package Equivalence Code:

  LGA108,10X14,40

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  245

• Seated Height-Max:

  2.63 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK-BOOST

• Switching Frequency-Max:

  1000 kHz

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  20

• Width:

  10 mm
