A good PCB layout for the PI3A288ZMEX involves keeping the input and output traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper power-on and power-off sequencing, the PI3A288ZMEX requires a controlled power-up and power-down sequence. The EN pin should be driven high after the input voltage has reached its nominal value, and the EN pin should be driven low before the input voltage is removed.
The PI3A288ZMEX has a thermal pad that must be connected to a solid ground plane to ensure proper heat dissipation. A thermal interface material (TIM) can be used to improve thermal conductivity. The device's junction temperature should be kept below 125°C to ensure reliability.
To troubleshoot issues with the PI3A288ZMEX, check the input voltage, output voltage, and enable pin voltage using an oscilloscope. Verify that the device is properly powered on and off, and that the input and output capacitors are properly sized and placed.
To minimize EMI, the PI3A288ZMEX should be placed away from sensitive analog circuits, and the input and output traces should be routed away from each other. A shielded enclosure and EMI filters can be used to further reduce EMI.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3A288ZMEX Overview

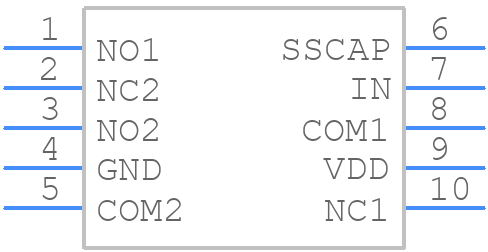

Use the download button to access the PI3A288ZMEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI3A2,
or try a keyword search, such as Multiplexers or Switches
