PI3B3257ZHDEX - Diodes Incorporated

Description: Multiplexer Switch ICs Bus Switch 3V U-QFN3030-16 T&R 3.5K

Download PI3B3257ZHDEX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

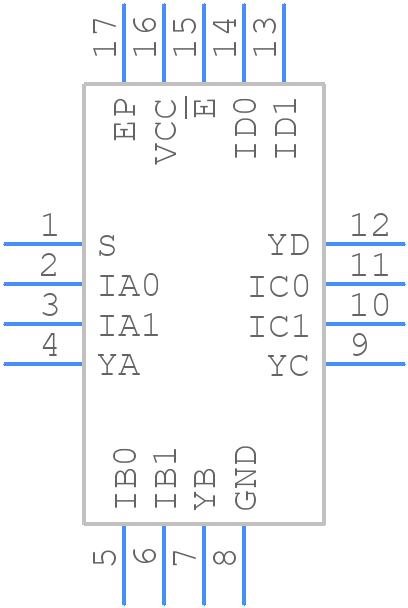

PI3B3257ZHDEX - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PI3B3257ZHDEX - Diodes Incorporated PCB footprint - Other - Other - PI3B3257ZHDEX-2
click to zoom
3D Models
PI3B3257ZHDEX - Diodes Incorporated - 3D model - Other - PI3B3257ZHDEX-2
click to zoom

PI3B3257ZHDEX Details

  • Manufacturer Part Number:

    PI3B3257ZHDEX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UQFN-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2018-02-08

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Family:

    CBTLV/3B

  • JESD-30 Code:

    S-PQCC-N16

  • Length:

    3 mm

  • Logic IC Type:

    BUS EXCHANGER

  • Number of Bits:

    2

  • Number of Functions:

    4

  • Number of Ports:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Propagation Delay (tpd):

    0.25 ns

  • Seated Height-Max:

    0.65 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.97 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

PI3B3257ZHDEX Frequently Asked Questions (FAQs)

  • Diodes Incorporated recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce signal loss and noise. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • Ensure a stable power supply with a low impedance output, and decouple the VCC pin with a 0.1uF ceramic capacitor and a 10uF electrolytic capacitor in parallel, placed as close to the device as possible.
  • The PI3B3257ZHDEX is rated for operation from -40°C to 85°C, but it's recommended to derate the device for reliable operation above 70°C.
  • Use oscilloscopes and logic analyzers to monitor signal waveforms and timing, and check for proper power supply and decoupling. Also, review the PCB layout and ensure it meets the recommended guidelines.
  • Yes, handle the device with ESD-safe equipment and follow proper ESD protection procedures during assembly and testing. The device has built-in ESD protection, but it's not a substitute for proper handling and protection measures.
