PI3CH3257LEX - Diodes Incorporated

Description: Multiplexer Switch ICs Bus Switch 3V TSSOP-16 T&R 2.5K

Download PI3CH3257LEX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

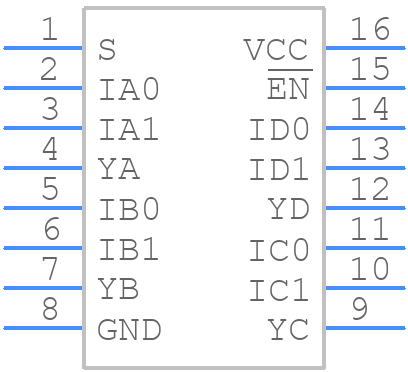

PI3CH3257LEX - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PI3CH3257LEX - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - 16-TSSOP.
click to zoom
3D Models
PI3CH3257LEX - Diodes Incorporated - 3D model - Small Outline Packages - 16-TSSOP.
click to zoom

PI3CH3257LEX Details

  • Manufacturer Part Number:

    PI3CH3257LEX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Additional Feature:

    IT CAN OPERATE 1.8 AND 3.3 V ALSO

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    3CH

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Logic IC Type:

    BUS EXCHANGER

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Prop. Delay@Nom-Sup:

    0.3 ns

  • Propagation Delay (tpd):

    0.3 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    2.75 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

PI3CH3257LEX Frequently Asked Questions (FAQs)

  • Diodes Incorporated recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce signal reflections and noise. A 4-layer PCB with a dedicated power plane is also recommended.
  • To ensure reliable operation, follow the recommended operating temperature range of -40°C to 85°C. Implement thermal management techniques such as heat sinks, thermal pads, or airflow to keep the device within the specified temperature range.
  • The maximum allowable voltage on the VCC pin is 3.6V. Exceeding this voltage may cause permanent damage to the device.
  • Yes, the PI3CH3257LEX is compatible with 1.8V systems. However, ensure that the input signals are within the specified voltage range (VCC-0.5V to VCC+0.5V) to maintain signal integrity.
  • To troubleshoot signal integrity issues, use oscilloscopes or signal analyzers to measure signal quality, check for signal reflections, and verify that the input signals meet the specified voltage and timing requirements.
