Diodes Incorporated recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces as short as possible to minimize signal degradation. Additionally, it's recommended to use a 50Ω impedance-controlled trace for the high-speed signals.
To ensure reliable operation in high-temperature environments, it's recommended to follow the thermal management guidelines provided in the datasheet. This includes using a heat sink, ensuring good airflow, and keeping the junction temperature below 125°C. Additionally, it's recommended to derate the device's power consumption according to the temperature derating curve provided in the datasheet.
The recommended power sequencing for PI3CH3257ZTAEX is to power up the VCC supply before the VCCA supply, and to power down the VCCA supply before the VCC supply. This ensures that the internal voltage regulators are properly initialized and avoids any potential latch-up conditions.
To troubleshoot issues with PI3CH3257ZTAEX, it's recommended to use a combination of oscilloscopes, logic analyzers, and power analyzers to monitor the device's signals and power consumption. Additionally, it's recommended to review the device's datasheet and application notes, and to consult with Diodes Incorporated's technical support team if necessary.
Yes, PI3CH3257ZTAEX is a sensitive device and requires proper ESD protection measures to prevent damage. It's recommended to handle the device in an ESD-controlled environment, use ESD-safe packaging and handling materials, and to follow proper grounding procedures when handling the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3CH3257ZTAEX Overview

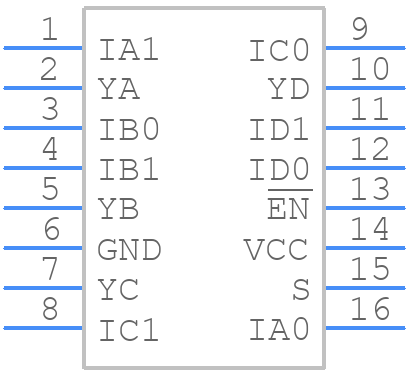

Use the download button to access the PI3CH3257ZTAEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI3CH,
or try a keyword search, such as Bus Driver/Transceivers
