A good PCB layout practice for the PI3CH480LE is to keep the signal traces short and away from noise sources, use a solid ground plane, and add decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure reliable operation of the PI3CH480LE in high-temperature environments, it is recommended to follow proper thermal design guidelines, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its recommended operating temperature range.
The PI3CH480LE has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing. Additionally, it is recommended to use ESD protection devices on the input/output lines to protect the device from external ESD events.
To troubleshoot issues with the PI3CH480LE, it is recommended to use oscilloscopes and logic analyzers to capture signal waveforms and protocol data. Additionally, checking the device's power supply, clock signals, and signal termination can help identify the root cause of the issue.
The recommended power sequencing for the PI3CH480LE is to power up the device in the following order: VCC, VCCIO, and then the clock signal. A reset strategy involving a power-on reset and a clock reset is recommended to ensure proper device initialization.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3CH480LE Overview

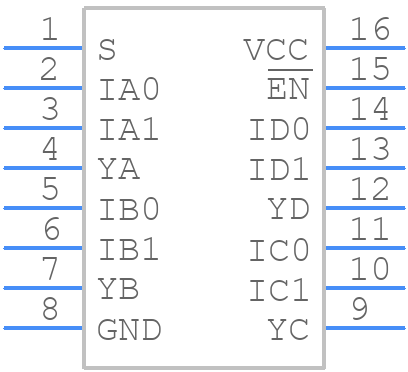

Use the download button to access the PI3CH480LE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI3CH,
or try a keyword search, such as Bus Driver/Transceivers
