PI3DPX1203ZHEX footprint, schematic symbol and 3D model by Diodes Incorporated

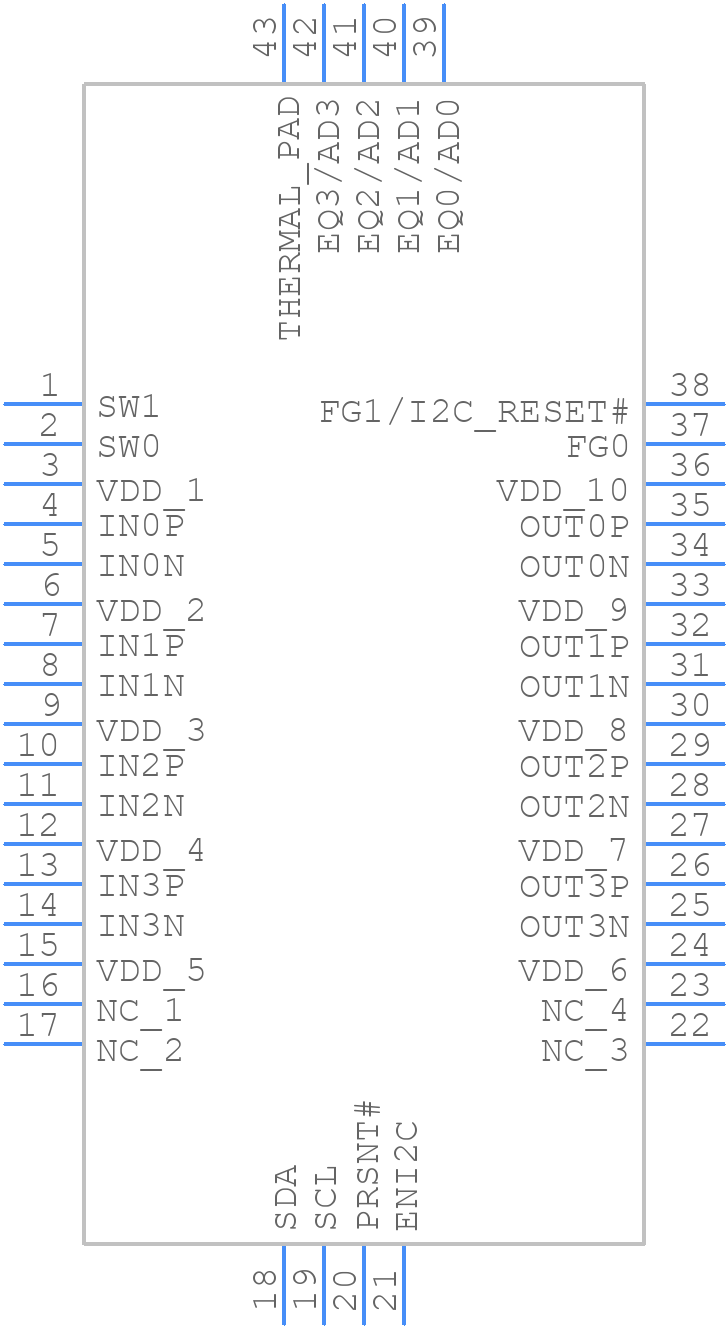

Symbol

click to zoom

PCB Footprints

PI3DPX1203ZHEX - Diodes Incorporated PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 42-contact, Very Thin Quad Flat No-Lead (TQFN)

click to zoom

3D Models

PI3DPX1203ZHEX - Diodes Incorporated - 3D model - Quad Flat No-Lead - 42-contact, Very Thin Quad Flat No-Lead (TQFN)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PI3DPX1203ZHEX
Part Number PI3DPX1203ZHEX
Manufacturer Diodes Incorporated
Pin Count 43
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 42-contact, Very Thin Quad Flat No-Lead (TQFN)
Released Date Dec 1, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PI3DPX1203ZHEX Details

Manufacturer Part Number:
PI3DPX1203ZHEX
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
TQFN-42
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Diodes Incorporated
YTEOL:
0
Differential Output:
YES
Driver Number of Bits:
4
Input Characteristics:
DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type:
LINE TRANSCEIVER
Interface Standard:
GENERAL PURPOSE
JESD-30 Code:
R-XQCC-N42
Length:
9 mm
Number of Functions:
4
Number of Terminals:
42
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Low Current-Max:
0.003 A
Output Polarity:
COMPLEMENTARY
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC42,.14X.35,20
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Receiver Number of Bits:
4
Seated Height-Max:
0.84 mm
Supply Current-Max:
360 mA
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
3.5 mm

PI3DPX1203ZHEX Frequently Asked Questions (FAQs)

A good PCB layout for the PI3DPX1203ZHEX involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper power-on and power-off sequencing, the PI3DPX1203ZHEX requires a controlled power-up and power-down sequence. The EN pin should be driven high after the input voltage has reached its nominal value, and the EN pin should be driven low before the input voltage is removed.
The PI3DPX1203ZHEX can drive a maximum capacitive load of 10nF. Exceeding this limit may cause instability or oscillations in the output voltage.
The PI3DPX1203ZHEX has a thermal pad that must be connected to a solid ground plane to ensure proper heat dissipation. A thermal via or a thermal pad on the PCB can be used to dissipate heat away from the device.
The recommended input capacitor value for the PI3DPX1203ZHEX is 1uF to 10uF, with a voltage rating of at least 6.3V. A larger input capacitor can help to reduce input voltage ripple and improve overall system stability.

Trust Checks

Community Provided

System Verified

Community Approved

PI3DPX1203ZHEX Overview

Use the download button to access the PI3DPX1203ZHEX schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PI3DP, or try a keyword search, such as Line Driver or Receivers
