Diodes Incorporated recommends a PCB layout with a solid ground plane, short traces, and minimal vias to minimize signal reflections and ensure signal integrity. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure signal integrity, use a controlled impedance PCB, keep signal traces short and away from noise sources, and use a common mode filter or a shielded cable to reduce EMI. Also, ensure that the device is properly terminated and that the signal is not over-driven.
The maximum cable length supported by PI3EQX2024ZTFEX depends on the specific application and the type of cable used. However, as a general guideline, Diodes Incorporated recommends a maximum cable length of 1 meter for USB 3.2 Gen 2 applications and 3 meters for USB 2.0 applications.
The PI3EQX2024ZTFEX is a programmable device that can be configured for different USB speeds using the I2C interface. The device can be configured for USB 3.2 Gen 2, USB 3.2 Gen 1, or USB 2.0 speeds by writing to the appropriate registers.
The power consumption of PI3EQX2024ZTFEX depends on the specific application and the operating mode. However, the typical power consumption is around 150 mA for USB 3.2 Gen 2 applications and 50 mA for USB 2.0 applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3EQX2024ZTFEX Overview

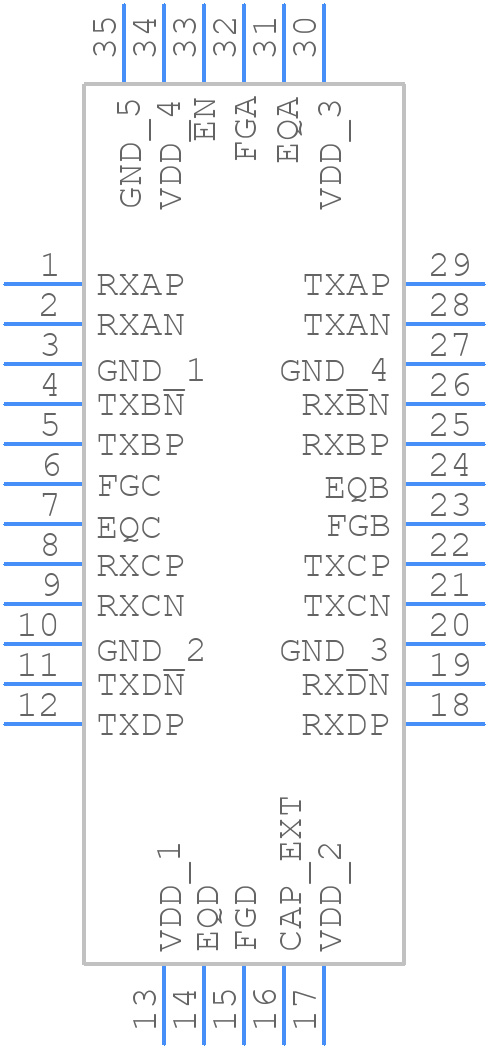

Use the download button to access the PI3EQX2024ZTFEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI3EQ,
or try a keyword search, such as Line Driver or Receivers
