A good PCB layout for the PI3HDX1204EZHEX involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power-on and power-off sequencing, it's recommended to follow the power-up and power-down sequences outlined in the datasheet. Additionally, make sure to provide a clean and stable power supply, and use a soft-start circuit to limit inrush current.
The PI3HDX1204EZHEX has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the device away from heat sources. Additionally, ensure good airflow and avoid blocking airflow around the device.
To troubleshoot issues with the PI3HDX1204EZHEX, start by checking the power supply voltage, input and output voltages, and current consumption. Use an oscilloscope to check for voltage drops, ringing, or oscillations. Also, check for proper PCB layout, decoupling, and thermal management. Consult the datasheet and application notes for specific troubleshooting guidelines.
Yes, the PI3HDX1204EZHEX is a high-frequency device and requires proper EMI/EMC design considerations. Use a shielded enclosure, keep the device away from antennas and other EMI sources, and use EMI filters or shielding on the input and output lines. Additionally, follow good PCB design practices, such as using a solid ground plane and minimizing loop areas.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3HDX1204EZHEX Overview

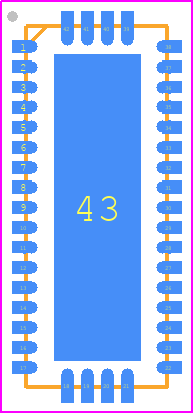

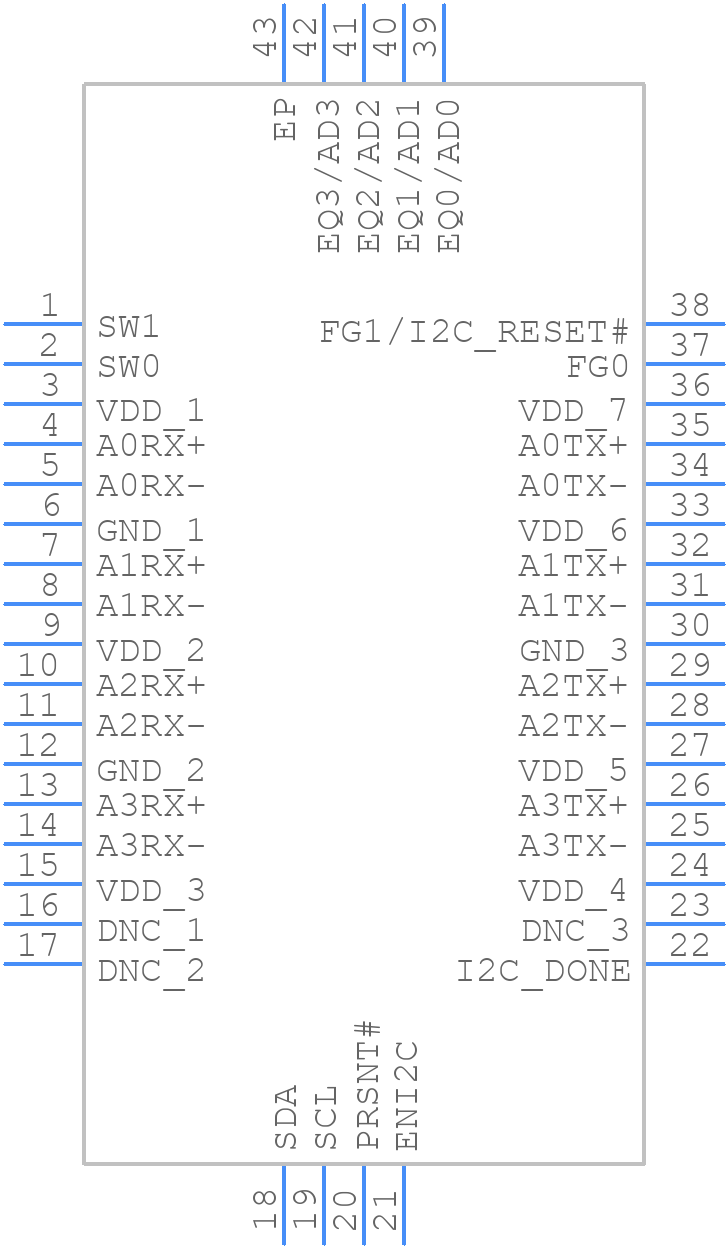

Use the download button to access the PI3HDX1204EZHEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI3HD,
or try a keyword search, such as Line Driver or Receivers
