A good PCB layout for the PI3WVR646GEEX involves keeping the input and output tracks as short as possible, using a solid ground plane, and minimizing the distance between the device and the load. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and ensure good airflow around the device. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
The PI3WVR646GEEX has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded.
Yes, the PI3WVR646GEEX can be used in a redundant or parallel configuration to increase the current output. However, it's essential to ensure that the devices are properly synchronized and that the output tracks are properly connected to avoid any potential issues.
The PI3WVR646GEEX has a thermal derating curve that should be followed to ensure reliable operation. The device's power rating decreases as the ambient temperature increases, so it's essential to consider the operating temperature and adjust the power rating accordingly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3WVR646GEEX Overview

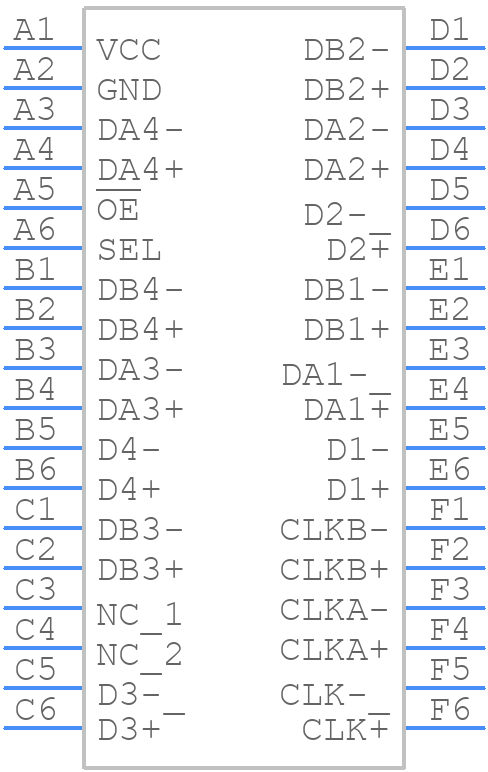

Use the download button to access the PI3WVR646GEEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI3WV,
or try a keyword search, such as Multiplexers or Switches
