A good PCB layout for the PI4MSD5V9547LEX involves keeping the input and output tracks as short as possible, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the PI4MSD5V9547LEX, use a high-quality power supply with low ripple and noise, and decouple the device with a 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed as close to the device as possible.
The PI4MSD5V9547LEX has an operating temperature range of -40°C to 125°C, but it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
To handle ESD protection for the PI4MSD5V9547LEX, use ESD-sensitive handling procedures, such as using an anti-static wrist strap or mat, and storing the device in an anti-static bag or container. Additionally, consider adding external ESD protection devices, such as TVS diodes, to the PCB design.
The PI4MSD5V9547LEX requires a high-quality clock signal with a signal integrity of at least 100mV peak-to-peak, and a clock frequency of up to 100MHz. It's recommended to use a clock signal with a 50% duty cycle and a rise/fall time of less than 1ns.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI4MSD5V9547LEX Overview

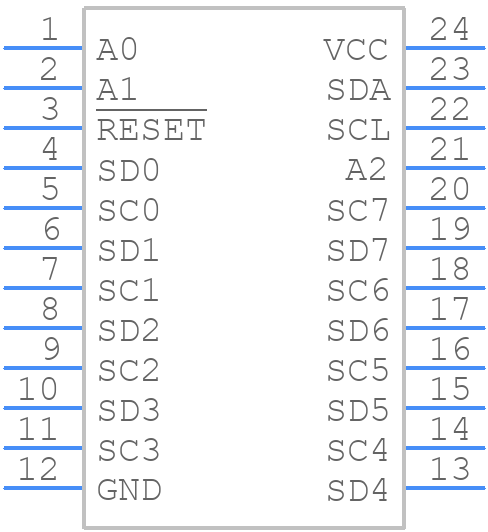

Use the download button to access the PI4MSD5V9547LEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI4MS,
or try a keyword search, such as Other Interface ICs
